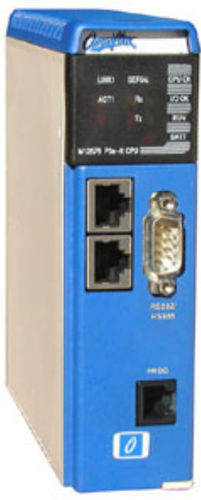

DIN rail PAC P3e-R

inputsEthernetredundant

-Designed for High Availability applications -Support for 1ms input time-stamping (with 32 SOE inputs) -Synchronises Program data with Standby Controller -No programming required for remote |/O applications -Automatic I/O module identification and scanning -Programmable in five IEC61131 programming languages -Integrated 10/100 Ethernet network point -Support up to three Remote I/O Bases using Conet -Support up to seven Remote I/O Bases using Ethernet Maxiflex P3e-R CPU with Serial Port, Program Port, Ethernet Port and Sync Link Port. Programmable in five ISaGRAF IEC61131 languages. Order M1831A programming cable if required. Includes TSM support. The MAXIFLEX P3e-R CPU is designed specifically for redundant remote I/O and control applications, where high availability is required in hot standby configurations. A high availability system is constructed by combining two identical P3e-R CPU’s, each with their own Power Supply and Base, to create independent Primary and Secondary Master Controllers. These two Master Controllers are connected to up to either three common Remote I/O Bases through a M1593A Conet Remote I/O Network Interface Module on each of the Controllers to a M1249A Remote I/O Scanner on each of the Remote I/O Bases using Conet OR up to seven common Remote I/O Bases though Ethernet using a M1594A Redundant I/O Link Ethernet Network Interface Module on each of the Controllers to a M1262F CPU as a Remote I/O Scanner using Ethernet, and to the SCADA system to create a hot standby controller configuration with common I/O The Primary and Secondary Controllers in a hot standby system are synchronised every program scan, so that should the primary Controller fail
