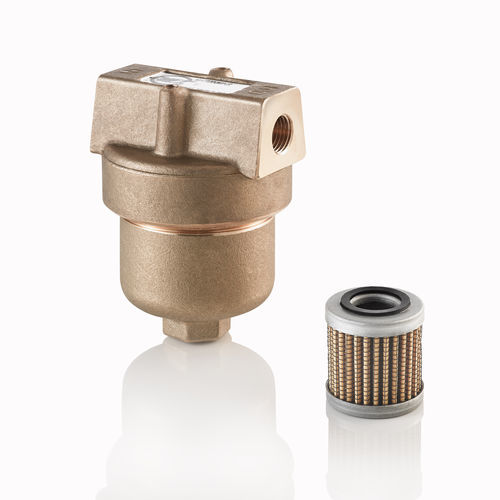

Hydraulic filter MHP220 seriescartridgepressureindustrial
Add to favorites
Compare this product
Characteristics
- Designed for
- hydraulic
- Filtration element
- cartridge
- Filtration method
- pressure
- Applications
- industrial
- Material
- brass
- Mounting
- threaded
- Fluid specification
- lubricating oil
- Operating pressure
Min.: 5 bar
(72.519 psi)Max.: 280 bar
(4,061.057 psi)- Filtration size
Min.: 10 µm
Max.: 125 µm
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 6 l/min
(1.585 us gal/min)- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 95 °C
(203 °F)
Description
The filters of our MHP220-series are suitable for use in pres-sure lines with flow rates up to 6 l/min.
They are to be placed in line on the pressure tube. Two versions are available: with and without by-pass valve, the repla-cement elements can be supplied either made of inorganic fibre, resin treated paper or made of wire mesh.
