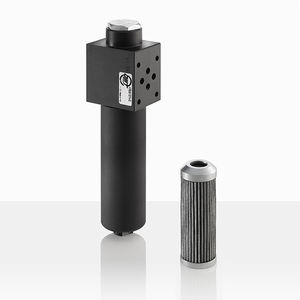

Hydraulic filter FOA series
oilbasketpressure

hydraulic filter
hydraulic filter
hydraulic filter
hydraulic filter
hydraulic filter
hydraulic filter
Add to favorites
Compare this product


Characteristics

Designed for
hydraulic, oil
Filtration element
basket
Filtration method
pressure
Applications
suction, high-pressure
Material
stainless steel
Mounting
flange
Other characteristics
in-line
Flow

Min.: 78 l/min (20.605 us gal/min)

Max.: 158 l/min (41.739 us gal/min)

Operating pressure

0.3 bar (4.351 psi)

Filtration size

Min.: 25 µm

Max.: 250 µm

Description

FOA is the series of filters for the high pressure line of hydraulic systems used with flanged connections on the tank wall below the fluid level. The oil leakage is avoided, during the replacement of the filtration element, by a stop valve. The design of FOA series allows OMT Group’s customers to choose the most suitable type to meet their own needs, equipping the filter with a magnetic column, a by-pass valve and a wide range of stoppage indicators.
