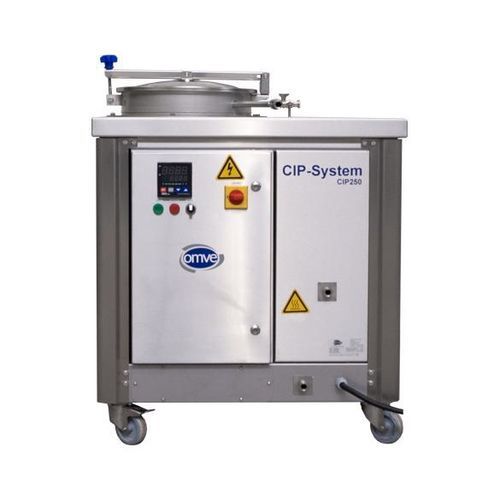

Clean-in-place unit CIP250

Product overview
The OMVE CIP250 is a compact manual Cleaning-In-Place (CIP) unit designed for efficient cleaning of pilot and laboratory process equipment without dismantling. Operators manually fill the 50 L CIP tank with the selected detergent solution and configure circulation parameters. The unit circulates the solution for the required time for alkaline/caustic or acid cycles. An electric heating option is available to reach process temperatures and improve cleaning performance. OMVE can supply the CIP250 with a dedicated 50 L circulation vessel to ensure minimum flow velocities for effective cleaning of vessels and pipework.

Applications

• Cleaning of small pilot plants and lab-scale process equipment, including OMVE modules (carbonators, fermenters, buffer tanks, blending vessels, UHT units)
• Cleaning of vessels, tanks and pipework without dismantling
• Suitable for R&D, pilot lines and small production runs requiring alkaline/caustic or acid cleaning cycles

Unique features

• Electric heating element option to reach target cleaning temperatures
• Automated circulation and cleaning of the 50 L vessel
• CIP pump with maximum flow up to 2.4 m3/hr to maintain required velocities
• Mobile, compact footprint with splash protection for operator safety and environmental containment

Technical specifications

• Type: Manual Cleaning-In-Place (CIP) unit
• Model: CIP250
• Tank capacity: 50 L
• Heating: Electric heating option available
• Pump flow rate: up to 2.4 m3/hr
• Cleaning method: Circulation of detergent solution for alkaline/caustic or acid cycles
• Use cases: Cleaning of vessels, pipework and small-scale process equipment without dismantling
• Design: Compact, mobile footprint suitable for pilot and laboratory installations
