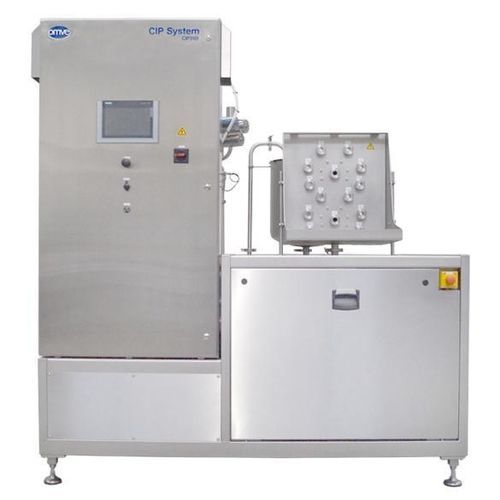

Clean-in-place unit CIP3101

Overview
The CIP3101 is an automated Cleaning‑in‑Place (CIP) unit designed to clean pilot plants and small process vessels without dismantling equipment. It supports acid and caustic detergents and reduces operator exposure to chemicals while protecting process areas from splashes. The unit includes regulated on‑board heating available as steam or electric and is configured for automated cleaning of 50 L and 100 L vessels.

Unique features

• Automated, accurate mixing and dosing of two cleaning agents (acid and caustic)
• Two independent dosing pumps for detergent lines
• OMVE control software with guided step‑by‑step cleaning programs
• On‑board regulated heating (steam or electric) for high‑temperature CIP cycles
• Automated cleaning cycles for 50 L and 100 L vessels
• CIP pump capacity up to 3 m3/hr for rapid circulation
• Design minimizes operator contact with detergents and reduces risk of facility contamination

Downloads (document titles)

• Cleaning in Place Range (PDF)
• Brochure CIP3101 / CIP351 (PDF)

Technical specifications

• Model: CIP3101
• Brand: OMVE
• Application: Automated Cleaning‑in‑Place for pilot plants and small process plants
• Cleaning agents supported: Acid and caustic (lye) solutions
• Dosing: Two dosing pumps for acid and caustic detergents
• Heating methods: Steam heating or electrical heating (on‑board regulated)
• On‑board heating: Regulated for high‑temperature CIP
• Vessel compatibility: 50 L and 100 L vessels
• CIP pump capacity: Up to 3 m3/hr
• Control/interface: OMVE software with guided cleaning programs
• Operator safety: Minimizes direct contact with detergents and reduces splash risk in the facility
