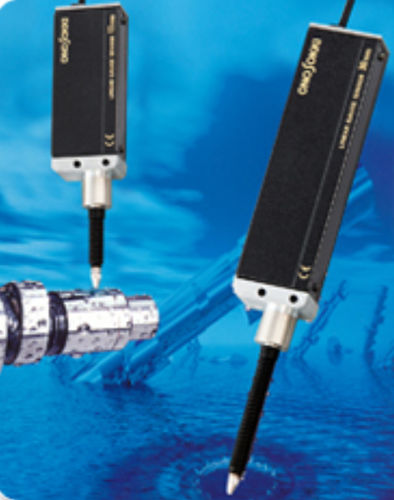

Linear measurement touch probe GS-1813A

rugged

This general purpose gauge sensor can maintain high accuracy while being used in harsh environments. In endurance testing, this model has proven to function beyond 6.5 million cycles. The GS-1813 is an upgrade and close replacement for the GS-1613A. 1.9 meter connection cable IP-64 splash proof and dustproof High durability and extremely long life Range 13 mm / 0.5" Resolution 0.001 mm / 0.00005" Response Speed11.8 in / s Measuring Force173 gf / 6.1 ozf Operating Temperature 32° to 104° F / 0° to 40° C Stem Diameter 15 mm Contact Point Thread ISO M2.5 Cable length (attached)1.9 meter Dimensions L-5.4" W-1.3" TH-.8" Weight 8.8 oz / 250 g Protection Class IP-64
