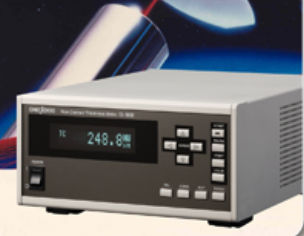

Stationary thickness gauge CL-5610

benchtopdigital display

The CL-5610/5610S is used to perform non-contact thickness measurement of objects under measurement including conductors, semiconductors and insulators in combination with the new-developed VE series capacitance type gap detector. The CL-5610/5610S can be connected up to 2 gap detectors and also used as 2-ch displacement meter. The CL-5610 has a built-in amplifier for a sensor and can be used to connect with the VE sensor directly. This model is effective for off-line measurement on a desktop PC. (The cable length between sensor and a main unit is 1.5 m, cannot be extended.) The CL-5610S can be used away from the VE sensor through an external amplifier. The cable length between a main unit and an external amplifier is 2.5 m as standard, up to 10-m extension as an option. It is suitable when the main unit of the thickness meter is set up separately from a sensor such as installation to the other equipment. Wide range of measurement items Both thickness and gap measurements can be performed. DEVI (deviation value), MAX (maximum value), MIN (minimum value), or Range (MAX-MIN from calculation start time) can be selected for each measurement item. Performs thickness measurement of conductors, semiconductors and insulators (option) with a single unit When the CL-0300 optional Insulator Measurement Function is installed, the CL-5610/5610S allows measurement of insulators such as thin plastic film or glass sheet.
