positive displacement flow meter / for fuel / compact / in-line
FP-2140H, FP-2240H

• Technology:

  positive displacement

• Fluid:

  for fuel

• Other characteristics:

  compact, in-line

• Process pressure:

  Max.: 0.02 bar (0.29 psi)

  Min.: 0 bar (0 psi)

• Process temperature:

  Max.: 65 °C (149 °F)

  Min.: 0 °C (32 °F)

• Volumetric flow rate:

  Max.: 120 l/h (31.7 us gal/h)

  Min.: 0.3 l/h (0.1 us gal/h)

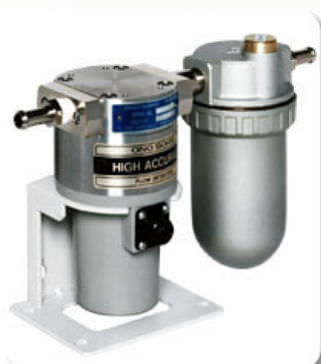

The FP-2140H is a compact and light weight volumetric flow detector. This detector utilizes positive displacement technique for reliable fuel flow measurement.



* Wide measurement range : 5 to 2000 milliliter/min
* Reversible flow compensation mechanism
* Excellent repeatability and reliability

FP-2240H - Volumetric Flow Detector
The FP-2240H is the FP-2140H flow detector with pressure and temperature measurement capability.



Wide measurement range : 5 to 2000 milliliter/min
Reverse flow compensation mechanism
Temperature measurement of 0 to +99.9 deg C
Pressure measurement of 0 to +980 kPa (± 0.5% accuracy)
