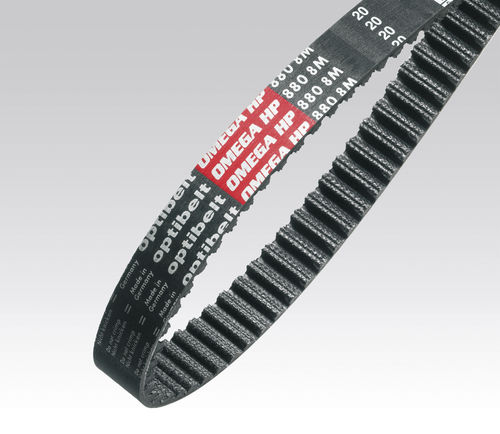

Timing belt OMEGA HP

rubberindustrialhigh-performance

is a high-performance timing belt that has been specially developed for high loads and high-speed drives. Improved materials and a highly developed process technology form the basis of this performance capability. Operational reliability: Longer service life Dynamic tests with the optibelt OMEGA HP timing belt result in an up to 150% higher performance level compared to the optibelt OMEGA. This results in significantly higher operational reliability and drive function. Quiet drive: less noise thanks to further development The optimized tooth shape and the notch in the tooth head of the optibelt OMEGA HP timing belts enable significantly lower noise levels. In conjunction with the specially developed materials, the noise level can be further reduced even at high speeds and high pre-tension. Electrical conductivity: Safe, without risk of ignition The electrical conductivity of optibelt OMEGA HP timing belts allows electrostatic charges to be safely dissipated. This can be so strong in timing belt drives with insufficient electrical conductivity that there is a risk of ignition due to sparking. Special EPDM version With a very high temperature resistance of -40 °C to +140 °C in profiles 8M and 14M, the optibelt OMEGA HP is extremely flexible at low temperatures. Optimal power transmission The optibelt OMEGA HP timing belts deliver optimal power transmission in a temperature range from -30 °C to +100 °C without premature ageing and embrittlement and therefore drive failure.
