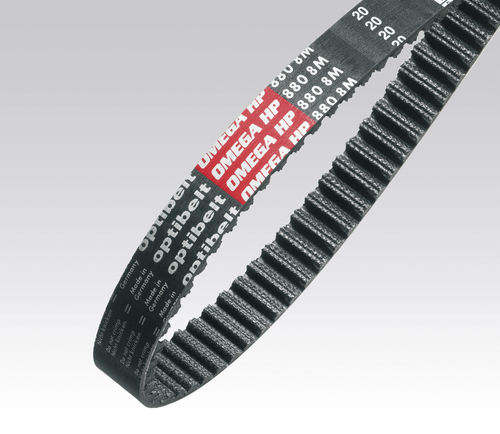

Toothed belt OMEGA HP
rubberfor heavy loads

toothed belt
toothed belt
toothed belt
toothed belt
Add to favorites
Compare this product


Characteristics

Type
toothed
Material
rubber
Other characteristics
for heavy loads
Length

Min.: 111 mm
(4.37 in)

Max.: 4,578 mm
(180.24 in)

Pitch

Min.: 2 mm
(0.079 in)

Max.: 14 mm
(0.551 in)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 140 °C
(284 °F)

Description

The Optibelt OMEGA HP high performance timing belt was especially developed for heavily loaded, high speed drives. Improved materials and highly developed process engineering form the basis for this very high performance level. For every power transmission requirement there is an appropriate belt section. Faster, stronger, more compact that is how the new Optibelt OMEGA HP presents itself, a timing belt for the highest demands. Advantages: High performance timing belt for extremely large loads at high rotational speeds Up to 2 times the power transmission capability of standard version Up to 18 times the life compared to standard timing belts Increase power transmission results in drive size reductions, saving cost The section is tailored to the standard HTD- and RPP pulleys
