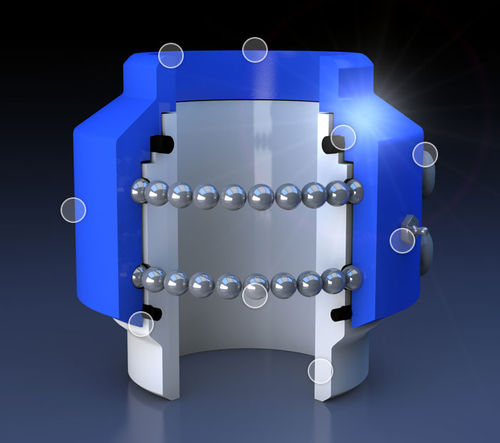

Hydraulic fitting 3000 series

flangestainless steelsteel

Available in a variety of materials, sizes and styles to meet virtually any application. Sizes: 3/4” to 12” Standard Materials: Aluminum, Bronze, Carbon Steel, Ductile Iron, 316 Stainless Steel Standard Seals: Buna-N, Fluorocarbon, PTFE, EPDM, Neoprene, Kalrez® End Connections: FNPT, 150/300 ANSI Flanged Ends, Butt/Socket Welds Metal Options Aluminum (ASTM B26, A356 T6) Bronze ( ASTM B62-83600) Carbon Steel (ASTM A105) Ductile Iron (ASTM A-536) Stainless Steel (ASTM A351-CF3M/CF8M) Seal Options Buna Fluorocarbon PTFE EPDM Neoprene Kalrez Lubrication Lubrication plays an important role in the life expectancy of a swivel joint. OPW has done extensive research to determine the best lubricants for our products. Our standard is a High Performance Synthetic Lubricant (OPW part # 880-0089). Specially formulated to reduce friction & wear. Requires only annual lubrication Will not drip, melt or carbonize Complies with FDA regulation 21CFR178.3570 Temperature Range -40F – 750F (-40C – 399C) Not for use with EPT/EPDM Seals. EPT/EPDM seals require the use of OPW 885-0085 lubricant.
