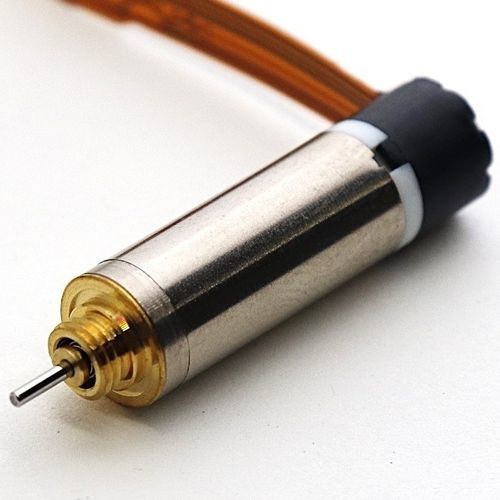

Brushed motor CMS07-17 seriesDC7.4 V3.7 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 7.4 V, 3.7 V
- Configuration
- coreless, miniature, ironless
- Number of poles
- 2-pole
- Applications
- industrial, for medical equipment, for medical applications
- Other characteristics
- custom, high-efficiency, low-noise, low-vibration, high-precision, with sleeve bearing
- Power
0.5 W
(0 hp)- Intensity
54 mA, 104 mA
- Torque
0.0001 Nm
(0.000074 ft.lb)- Rotational speed
20,200 rpm, 22,100 rpm
(126,920.3432 rad.min-1, 138,858.3953 rad.min-1)- Diameter
7 mm
(0.28 in)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
CMS07-17 is a Brushed Motor with a diameter of 7 mm and length of 17 mm.
Precious metal commutation, Sleeve bearing Brushed Motor.
Rated torque(mNm):0.144/0.135
No load speed(rpm):20200/22100
No load current(mA):19/10
Stall torque(mNm):19/10
Stall current(mA):571/283
-mini motor
-brushed motor
-low noise
-light weight
-high efficiency
-responsiveness
-low vibration
-miniaturization
