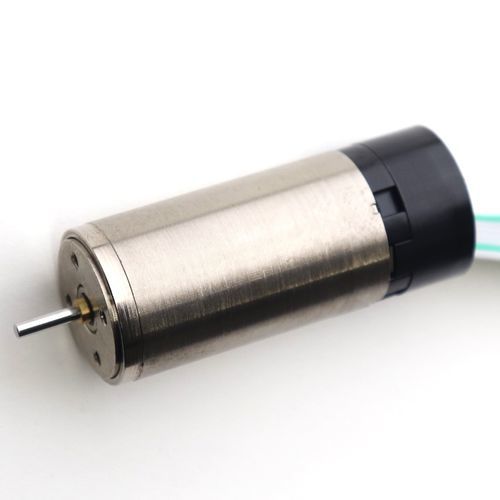

Brushed electromotor CMS16-23DC12 V24 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 12 V, 24 V, 7.4 V
- Configuration
- coreless, compact, miniature
- Other characteristics
- with sleeve bearing, high-efficiency, low-noise, low-vibration
- Power
3.3 W, 3.8 W, 3.9 W
(0 hp, 0.01 hp, 0.01 hp)- Intensity
73 mA, 145 mA, 209 mA
- Torque
0.0009 Nm
(0.000664 ft.lb)- Rotational speed
14,500 rpm, 15,500 rpm, 16,600 rpm
(91,106.187 rad.min-1, 97,389.3723 rad.min-1, 104,300.8761 rad.min-1)- Diameter
16 mm
(0.63 in)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
CMS16-23 is a Brushed Motor with a diameter of 16 mm and length of 23 mm.
Precious metal commutation, Sleeve bearing Brushed Motor.
Rated torque(mNm):0.893/0.942/0.886
No load speed(rpm):14500/15500/16600
No load current(mA):24/16/8
Stall torque(mNm):8.78/9.67/8.66
Stall current(mA):1849/1340/643
-mini motor
-brushed motor
-low noise
-light weight
-high efficiency
-responsiveness
-low vibration
-miniaturization
