Brushed electromotor CMS12-20DC12 V7.4 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 12 V, 7.4 V
- Configuration
- coreless, compact, miniature
- Other characteristics
- with sleeve bearing, high-efficiency, low-noise, low-vibration
- Power
3.2 W, 3.5 W
(0 hp, 0 hp)- Intensity
99 A, 150 A
- Torque
0.0004 Nm
(0.000295 ft.lb)- Rotational speed
22,200 rpm, 23,000 rpm
(139,486.7138 rad.min-1, 144,513.2621 rad.min-1)- Diameter
12 mm
(0.47 in)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description

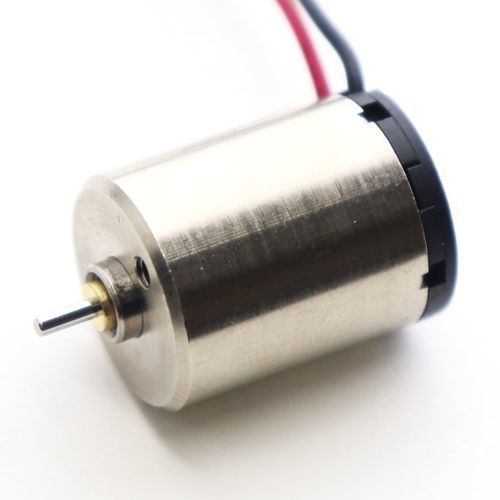

CMS12-20 is a Brushed Motor with a diameter of 12 mm and length of 20 mm.
Precious metal commutation, Sleeve bearing Brushed Motor.
Rated torque(mNm):0.435/0.447
No load speed(rpm):22200/23000
No load current(mA):13/8
Stall torque(mNm):5.48/5.77
Stall current(mA):1744/1173
-mini motor
-brushed motor
-low noise
-light weight
-high efficiency
-responsiveness
-low vibration
-miniaturization
