Brushed electromotor CMS16-33
DC12 V24 V

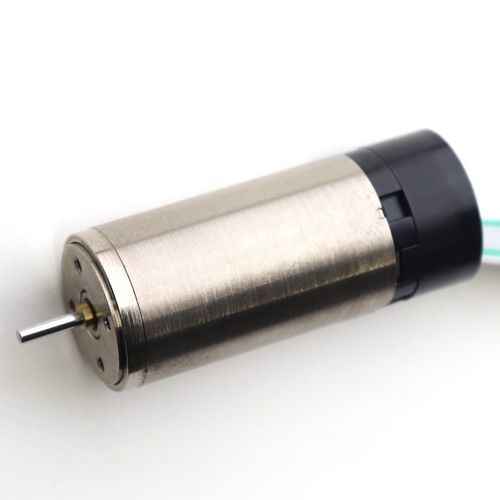

Brushed electromotor - CMS16-33 - Orbray Co., Ltd - DC / 12 V / 24 V
Brushed electromotor - CMS16-33 - Orbray Co., Ltd - DC / 12 V / 24 V
Brushed electromotor - CMS16-33 - Orbray Co., Ltd - DC / 12 V / 24 V - image - 2
Add to favorites
Compare this product

Characteristics

Type
brushed, DC
Voltage
12 V, 24 V, 7.4 V
Configuration
coreless, compact, miniature
Other characteristics
with sleeve bearing, high-efficiency, low-noise, low-vibration
Power

6.4 W, 6.9 W, 8.5 W
(0.01 hp, 0.01 hp, 0.01 hp)

Intensity

92 mA, 147 mA, 250 mA

Torque

0.0016 Nm, 0.0017 Nm
(0.00118 ft.lb, 0.001254 ft.lb)

Rotational speed

9,900 rpm, 10,100 rpm, 11,600 rpm
(62,203.5345 rad.min-1, 63,460.1716 rad.min-1, 72,884.9496 rad.min-1)

Diameter

16 mm
(0.63 in)

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Description

CMS16-33 is a with a diameter of 16 mm and length of 33 mm. Precious metal commutation, Sleeve bearing Brushed Motor. Rated torque(mNm):1.626/1.576/1.690 No load speed(rpm):10100/9900/11600 No load current(mA):250/147/92 Stall torque(mNm):26.13/24.66/28.09 Stall current(mA):3761/2155/1432 -mini motor -brushed motor -low noise -light weight -high efficiency -responsiveness -low vibration -miniaturization
