Brushed electromotor C4S10-1307DC4.8 Vmultipole
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 4.8 V
- Number of poles
- multipole
- Power
0.7 W
(0 hp)- Intensity
136 mA
- Rotational speed
13,500 rpm
(84,823.0016 rad.min-1)- Diameter
10 mm
(0.39 in)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description

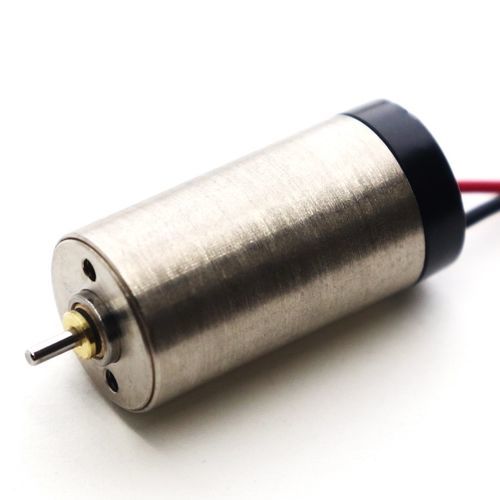

C4S10-1307 is a Brushed Motor with a diameter of 10 mm and length of 13 mm.
Precious metal commutation, Sleeve bearing Brushed Motor.
Rated torque(mNm):0.28
No load speed(rpm):16300
No load current(mA):28
Stall torque(mNm):1.66
Stall current(mA):657
-brushed motor
-low noise
-light weight
-high efficiency
-responsiveness
-low vibration
-miniaturization
Catalogs
C4S10-1307
1 Pages
