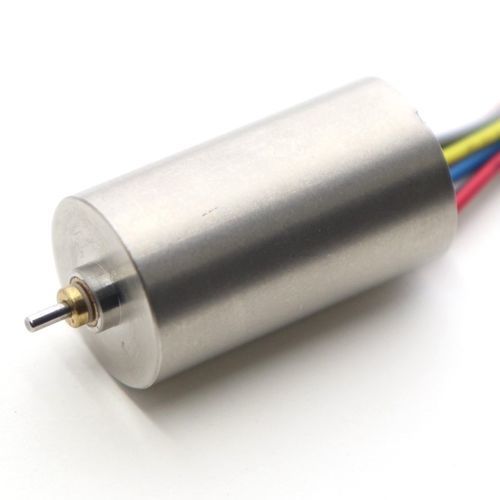

Brushless electromotor B4S12-21 DC12 V7.4 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 12 V, 7.4 V
- Number of poles
- 4-pole
- Power
4.5 W, 5.9 W
(0.01 hp, 0.01 hp)- Intensity
277 mA, 279 mA
- Torque
0.0016 Nm, 0.0018 Nm
(0.00118 ft.lb, 0.001328 ft.lb)- Rotational speed
19,200 rpm, 21,100 rpm
(120,637.1579 rad.min-1, 132,575.21 rad.min-1)- Diameter
12 mm
(0.47 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
B4S12-21 is a Brushless Motor with a diameter of 12 mm and length of 21 mm.
4 Pole magnet
Rated torque(mNm):1.6/1.6
No load speed(rpm):15320/19300
No load current(mA):55/56
Stall torque(mNm):11.1/11.6
Stall current(mA):1590/1680
-brushless motor
-long life time
-high output
-high reliability
-miniaturization
Catalogs
B4S12-21XX
1 Pages
SHSD24-01A
2 Pages
Other Orbray Co., Ltd products
4-Pole high torque motors
