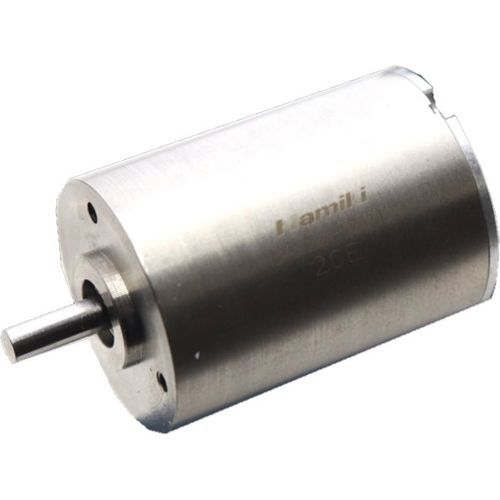

Brushless electromotor B4S22-3210DC24 V4-pole
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Number of poles
- 4-pole
- Power
13.9 W
(0.02 hp)- Intensity
365 mA
- Torque
0.001 Nm
(0.000738 ft.lb)- Rotational speed
6,073 rpm
(38,157.7844 rad.min-1)- Diameter
22 mm
(0.87 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
B4S22-3210 is a Brushless Motor with a diameter of 22 mm and length of 32 mm.
4 Pole magnet
Rated torque(mNm):10
No load speed(rpm):7000
No load current(mA):2410
Stall torque(mNm):75.5
Stall current(mA):2410
-brushless motor
-long life time
-high output
-high reliability
-miniaturization
