Brushed electromotor C4S10-1907DC7.4 V4-pole
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 7.4 V
- Number of poles
- 4-pole
- Power
2 W
(0 hp)- Intensity
120 mA
- Torque
0.0005 Nm
(0.000369 ft.lb)- Rotational speed
14,900 rpm
(93,619.4611 rad.min-1)- Diameter
10 mm
(0.39 in)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description

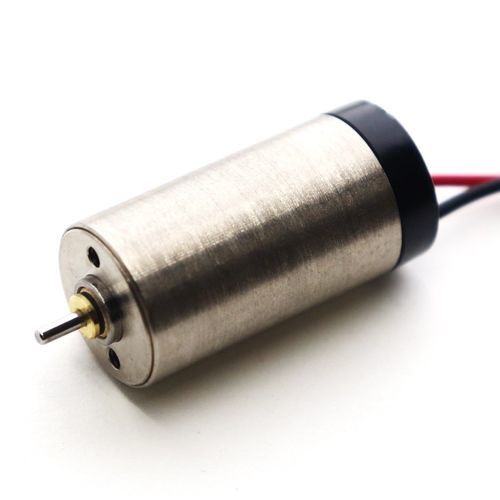

C4S10-1907 is a Brushed Motor with a diameter of 10 mm and length of 19 mm.
Precious metal commutation, Sleeve bearing Brushed Motor.
Rated torque(mNm):0.45
No load speed(rpm):16500
No load current(mA):13
Stall torque(mNm):4.62
Stall current(mA):1100
-brushed motor
-low noise
-light weight
-high efficiency
-responsiveness
-low vibration
-miniaturization
Catalogs
C4S10-1907
1 Pages
