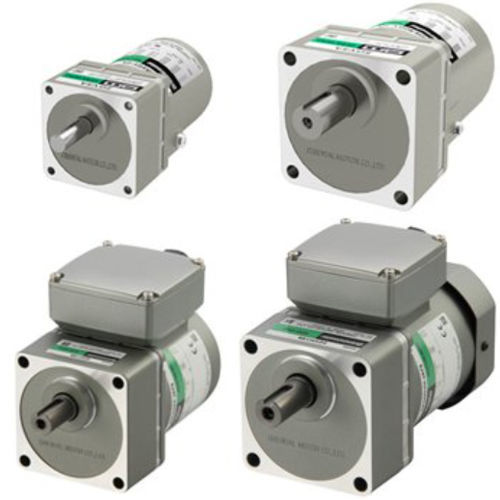

AC gear-motor KII series

inductionspurcoaxial

Oriental Motor, which has set the standard for AC motors, listened and has sought out the next generation in AC motors with the KII Series Single-Phase AC motors. The KII Series also offers the high strength Parallel Shaft type gears that maximize motor performance with simple wiring and flexible mounting options. The KII Series is available from 6 W (1/125 HP) up to 90 W (1/8 HP) with either Imperial or Metric standard output shafts. Round Shaft or Parallel Shaft Gear Motors Imperial or Metric Shaft options Stainless Steel Shaft (Metric only) Lead Wire or Terminal Box types Single-Phase 110/115 VAC or Single-Phase 220-230 VAC Electromagnetic Brake type availabl Excellent Motor Performance The magnetic balance for each input voltage has been re-examined and the motors have been specifically designed to optiize their characteristics. Designing specifically for each voltage not only improves efficiency, but also contributes to equipment reliability by reducing heat and vibration generated by the motor. Combination Type The motor and gearhead come pre-assembled and ready to install. Concerns of damage resulting from improper gearhead installation leading to abnormal noise in the shaft are eliminated. Easy installation thanks to the pre-assembled motor and gearhead. High Gear Ratio Decimal gearheads were once required for gear ratios above 1:180. Now a single gearhead is available (up to 1:360), saving space and reducing components and costs. No decimal gearhead is required, allowing the total length to be shortened Tap Output Shaft An end tap has been integrated into the tip of the output shaft of gearheads, with a rated output power of 25 W (1/30 HP) and higher.
