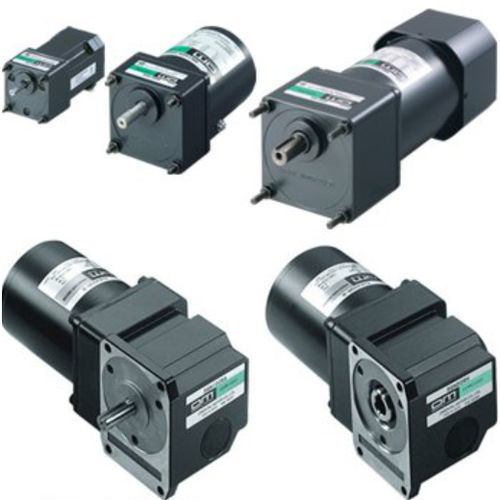

Asynchronous motor K series

three-phase220 V110 V

single-phase AC induction motors & gear motors offer a wide selection with reliable performance, global agency approvals and conform to the RoHS Directive. These motors come in 1 W (1/750 HP) up to 90 W (1/8 HP) and are available as a round shaft motor only or with a parallel or right angle gearhead. Three-Phase Motors with Electromagnetic Brake Available Parallel Shaft, Right-Angle Hollow Shaft and Right-Angle Solid Shaft Worm Gear Motors Round Shaft and 2-Pole, High Speed Types Lead Wire, Terminal Box or Conduit Box Types Single-Phase 110/115 VAC or Single-Phase 220-230 VAC Safety Standards for Safe, Reliable Operation All World K Series models have a built-in overheat protection device and conform to major international safety standards. UL/CSA, CE Marking (Low Voltage Directive), models certified under CCC (China Compulsory Certification system) are also available. Motor Overheat Protection Device Thermal Protector: A built-in feature of all motors with a frame size of 2.76 in. (70 mm) or more. Impedance Protection: Implemented on all motors with a frame size of 2.36 in. (60 mm) or less. Global Voltage Specifications The World K Series supports the power supply voltages used in major countries. Motors meeting the local voltage standard are readily available in major countries in Europe, Asia and North America. The Motor Bearing Life is Twice as Long as Conventional Type A motor's life is determined by its bearing. We adopted high-performance bearing grease to lubricate this important component. As a result, the bearings of the World K Series motors last twice as long as conventional bearings.
