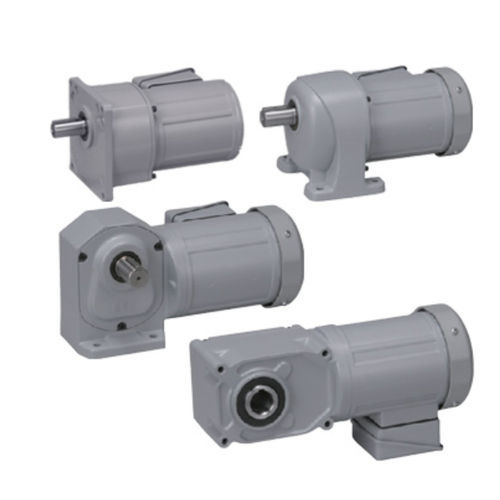

AC gear-motor MMD

three-phasesingle-phasehypoid

These high efficiency ie3 new MMD AC gear motors feature superior efficiency from hypoid or helical gears while offering greater torque output thereby allowing for smaller motors and greater energy saving. The gears in these AC gear motors are high strength, maintenance free and can be mounted in any direction with their slip fit "O" ring design. High reduction ratios, flange mount or foot mount types, right angle or hollow shaft right angle types available. 400 W (1/2 HP) Parallel Shaft (Foot Mount or Flange Mount), Right-Angle Hollow Shaft and Right Angle Solid Shaft Gear Types Single-Phase 115, 220 and 230 VAC Introducing the new Modular Mid Design (MMD) motors from Brother. The MMD gearmotors now feature a more compact design with the same hypoid and helical gearheads. This means, same mounting in a more compact design. More Clearance for Wiring Revised dimensions and terminal block layout. The new design allows for more working space when wiring. High Efficiency Gear Motors High efficiency gear motors feature Hypoid gearing technology that can maintain efficiency above 85% throughout the motor's wide speed range. Compared to commonly used worm gears' lower efficiency, this can result in massive energy savings. Lower cost to operate - applications running for long periods will demonstrate clear benefits. The ie3 gear motors have a wide speed range that does not suffer in efficiency from the motor or gearbox. These gear motors can be mounted in any direction because they are sealed for life with grease.
