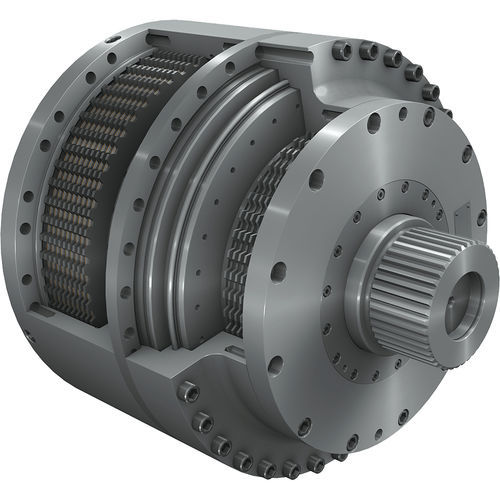

Friction brake 992 hydraulicdoublewinch
Add to favorites
Compare this product
Characteristics
- Type
- friction
- Operation
- hydraulic
- Other characteristics
- double, winch
- Torque
Max.: 160,000 Nm
(118,009.9439 ft.lb)Min.: 14,500 Nm
(10,694.6512 ft.lb)
Description
The Ortlinghaus brake products for free-fall winch applications represent the cutting edge in construction brake engineering. We offer two brake types, one with a single plate pack, the other with a double plate pack.
Both are spring-loaded brakes which are hydraulically released.
The single plate pack product is based on the construction principle of the model series 022, with an additional piston chamber which allows pressure-activated braking.
The double plate pack product has two plate packs with different friction pairings. This allows dynamic braking as well as holding a load while avoiding micro-slippage.
