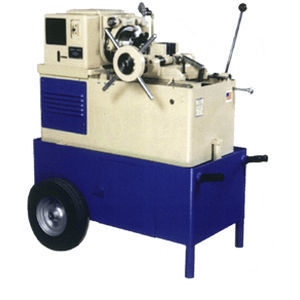

Semi-automatic pipe threading machine Oster 582A

Overview
The Oster 582A is a portable 2" capacity threading machine for pipe and bolt threading. It is designed to thread pre-cut or pre-formed stock and features a revolving die head for efficient chip clearance.

Featuring the X1 Style Rotating Diehead
The machine uses the Oster X1 style rotating diehead for semi-automatic operation with adjustable over/undersize threading capability.

Threading Capacities
Bolt capacity: 1/4" to 2"
Pipe capacity: 1/8" to 2"

General Specifications
Height (machine only): 25"
Width (machine only): 25"
Length (machine only): 43"
Net weight (machine only): 521 lbs.
Shipping weight (machine only): 646 lbs.

Semi-Automatic Rotating Diehead
Open construction permits chips to fall away during cutting. A yoke actuated by the movement of the vise carriage automatically controls opening and resetting of the diehead. Head is fully adjustable for over- and undersize thread.

Vise and Carriage
The machine includes a fast-acting, self-centering vise carriage that permits easy loading, ensures positive gripping and automatic centering. Auxiliary jaws are provided for diameters under 1/2".

Accessories & Additional Tools

• No. 03193 Wheel Stand — wheel stand with pneumatic tires and a locking compartment for tooling and accessory storage.
• Reaming and Chamfering Attachments — reamer or combination reaming and chamfering tools available.
• Additional accessories — bolt and pipe dies, nipple and stud grips, ream and chamfer tools, adjustable pipe support.

Standard Equipment Furnished

• Motor - 2 H.P. single phase (three phase optional at additional cost) 50/60 Hz; specify single-phase 115 or 230 volt, three phase 230 or 460 volt. Variable speed drive; selectable speeds 22 through 58 RPM.
• Switch - Heavy duty, reversing. (Safety foot switch optional.)
• Die Head Control - Semi-automatic tripping and resetting device with emergency hand trip.
• Die Head - One revolving, semi-automatic, adjustable type (less all dies). Uses Oster X-1 dies.
• Vise - Quick-acting opening type with hardened steel insert gripping jaws and auxiliary jaws for diameters under 1/2".
• Stock-Stop - Automatic, adjustable.
• Gage - Sliding type for thread length.
• Oil Pump - Reversible vane type with relief valve.
• Oil - Thread cutting, five gallons — Oster "OSTO".

Dark Thread Cutting Oil (OSTO)
Oster OSTO dark thread cutting oil is recommended for thread cutting to keep threads cool, reduce friction and extend die life; formulated to prevent chip welding and maintain cutting performance.

Video
A product video demonstrating the 582A threading machine is available.

Technical specifications

• Model: Oster 582A
• Threading capacities: Bolt 1/4"–2", Pipe 1/8"–2"
• Motor: 2 HP (single phase standard; three phase optional), 50/60 Hz; volt options: single-phase 115 or 230 V; three-phase 230 or 460 V
• Speed range: 22–58 RPM (variable speed drive)
• Die head: X1 revolving, semi-automatic, adjustable (uses Oster X-1 dies)
• Vise: Quick-acting, self-centering with hardened steel insert gripping jaws; auxiliary jaws for <1/2" diameters
• Stock-stop: Automatic, adjustable
• Gage: Sliding type for thread length
• Oil pump: Reversible vane type with relief valve
• Included oil: 5 gallons Oster OSTO thread cutting oil
• Dimensions (machine only): H 25" x W 25" x L 43"
• Net weight: 521 lbs.
• Shipping weight: 646 lbs.
