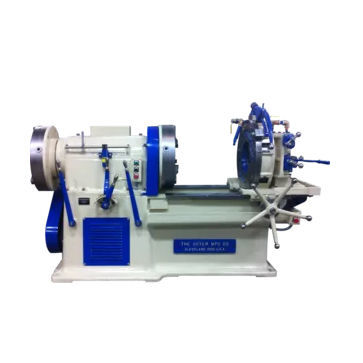

Automatic pipe threading machine 8R

Product Overview
The Oster 8R Rapiduction is an industrial pipe and bolt threading machine engineered for shop and field applications. Its heavy, massive construction includes hand‑scraped ways and bearings to ensure alignment and precision. Two clutch levers (front and rear) together with the rear flange gripping chuck allow efficient making and breaking of fittings.

Threading Capacities
Standard pipe capacity: 2.5" to 8"
Standard bolt capacity: 2" to 6"

General Specifications
Spindle speeds (variable): 7-9-14-21-26-42
Carriage travel: 25"
Length: 98.5"
Width: 50"
Height: 62.5"
Net weight: 7,640 lb
Shipping weight: 7,940 lb

No Diehead Change
A single diehead threads all pipe sizes from 2.5" through 8" without changing head, holders or dies (uses Symbol 8R dies).

Radial Dies
M2 tool steel dies are retained in durable steel holders; one set covers all sizes of the same pitch and taper.

Accessories

• Victaulic type grooving tool attachment — ensures correct groove depth, width and distance from pipe end for Victaulic applications; available as optional equipment for the 8R.
• Model 8T — variant for precision A.P.I. threading; includes leadscrew, taper attachment and a diehead using tangential chasers.
• Additional accessories: No. 6 nipple chuck, adjustable pipe supports, and Oster thread cutting oil "OSTO".

Standard Equipment Furnished

• Motor: 7.5 hp, 1,200 rpm, 3‑phase, 60 Hz; 230 or 460 V (other motor specs available).
• Motor control: Reversing magnetic starter and pushbutton station with 120 V safety control circuit at machine controls.
• Diehead: One radial, quick‑opening type, adjustable to handle the standard range.
• Die holders: One set covering standard pipe range.
• Dies: One set (Symbol 8R), high speed steel, covering 2.5"–8".
• Reamer: Swing‑type.
• Cut‑off device: Lathe‑style blade cut‑off with double V block centering.
• Chamfer tool: Lathe type, mounted in cut‑off block.
• Front chuck: Powerful three‑jaw universal gripping.
• Rear chuck: Three‑flange jaw universal gripping.
• Gage: Direct‑reading drum type mounted on carriage handwheel.
• Oil pump: Internal gear type with automatic reversing.
• Oil: Thirty gallons of Oster "OSTO" thread cutting oil.

Video
Video available demonstrating the Oster 8R threading machine.

Technical specifications

• Standard pipe capacity: 2.5" to 8"
• Standard bolt capacity: 2" to 6"
• Spindle speeds (variable): 7-9-14-21-26-42
• Carriage travel: 25"
• Dimensions (L x W x H): 98.5" x 50" x 62.5"
• Net weight: 7,640 lb; Shipping weight: 7,940 lb
• Motor: 7.5 hp, 1,200 rpm, 3‑phase, 60 Hz (230 or 460 V)
• Motor control: Reversing magnetic starter with 120 V control circuit
• Diehead: Single radial, quick‑opening type (no diehead change required across range)
• Dies: High speed steel, Symbol 8R (covers 2.5"–8")
• Reamer: Swing‑type
• Cut‑off: Lathe‑style blade with double V block centering
• Chamfer tool: Lathe type
• Front chuck: Three‑jaw universal gripping
• Rear chuck: Three‑flange jaw universal gripping
• Gage: Direct‑reading drum type on carriage handwheel
• Oil pump: Internal gear type, automatic reversing
• Oil capacity: Thirty gallons of Oster "OSTO" thread cutting oil
