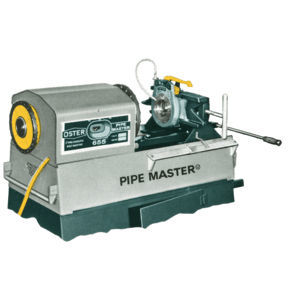

Automatic pipe threading machine Oster 654

Product Overview
Oster Pipe Master models 654 and 655 are portable industrial machines for cutting threads on pipes and bolts in job and maintenance shops. Flat machine ways on a fabricated steel base and a design optimised for service access ensure consistent thread quality and ease of maintenance.

Threading Capacities
Bolt capacity: 1/4 in to 2 in
Pipe capacity: 1/8 in to 2 in

General Specifications
Height: 17.25 in (654 and 655)
Length: 39.5 in (654 and 655)
Width: 17.5 in (654 and 655)
Net weight: 654 = 265 lbs; 655 = 260 lbs
Shipping weight: 654 = 305 lbs; 655 = 300 lbs

The Oster 655 with Slide-In Tools
The 655 accepts slide-in tooling for rapid changeover and reliable thread formation under continuous workshop use. Slide-in tools simplify alignment and replacement.

Roll-Over Headstock
Exclusive 'Roll-Over' headstock (standard) permits quick access to motor, brushes and switch box. Removing a single pin allows the headstock to pivot up and back for maintenance and inspection.

654 – Equipped with Swing-Over Tools
The 654 is fitted with Quad II swing-over tools featuring an automatic opening system that ensures correct NPT thread length and provides through-die-head oiling for improved cutting lubrication.

654/655 Thread Machine Features

• Flat ways
• Fabricated steel construction
• Patented chuck jaw inserts
• 'See-thru' cutter on the 654 to indicate cut location
• Thru-the-head coolant/oiling system on the 654
• Automatic or manual opening die head options
• Optional attachment for 'breaking' fittings

Standard Equipment Furnished

• Motor: single-phase universal, reversible, variable speed — specify 120 or 240 V AC, 1 phase 50–60 Hz; rated 1/2 HP (develops up to 2 HP). Spindle speeds (no load): standard 38 RPM; optional 60 RPM.
• Switch: heavy-duty reversing switch; safety foot switch included (machine operates only with foot on switch).
• Diehead: one Quad II quick-opening die head — capacity 1/8 in thru 2 in pipe.
• Dies: two sets of high-speed steel pipe dies (right-hand): one set (1/2 in and 3/4 in), one set (1 in thru 2 in).
• Reamer: detachable blade-type reamer.
• Cutter: roller-type, self-centering (blade type available with 655).
• Front chuck: fast positive gripping, both right- and left-hand direction, with replaceable jaw inserts.
• Rear centering chuck: rotating type; scroll actuates three guides simultaneously.
• Oil pump: reversible gear-driven vane pump with relief valve.
• Thread cutting oil: Oster 'OSTO' dark threading oil — two gallons supplied.

Technical Specifications

• Model/Series: Oster 654/655
• Threading capacities: bolt 1/4 in to 2 in; pipe 1/8 in to 2 in
• Dimensions (L x W x H): 39.5 in x 17.5 in x 17.25 in (both models)
• Net weight: 654 = 265 lbs; 655 = 260 lbs
• Shipping weight: 654 = 305 lbs; 655 = 300 lbs
• Motor: single-phase universal, reversible, variable speed; specify 120 or 240 V AC, 1 phase 50–60 Hz; rated 1/2 HP (develops up to 2 HP)
• Spindle speeds (no load): standard 38 RPM; optional 60 RPM
• Diehead: Quad II quick-opening, capacity 1/8 in thru 2 in pipe
• Dies supplied: two sets of high-speed steel pipe dies (right-hand)
• Cutter: roller-type, self-centering (blade type available on 655)
• Reamer: detachable blade type
• Chucks: front fast positive chuck with replaceable jaw inserts; rear rotating centering chuck
• Oil pump: reversible gear-driven vane pump with relief valve
• Thread cutting oil: Oster 'OSTO' (2 gallons supplied)
