2-post lift POWER HF 3S 3500 OTTO MM
3.5 tonhydraulicfor car

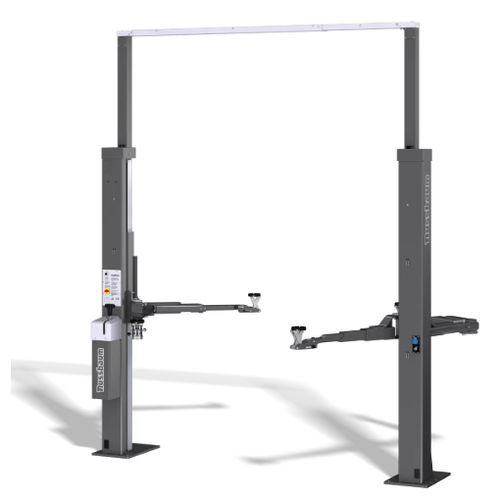

2-post lift - POWER HF 3S 3500 OTTO MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car
2-post lift - POWER HF 3S 3500 OTTO MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car
2-post lift - POWER HF 3S 3500 OTTO MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 2
2-post lift - POWER HF 3S 3500 OTTO MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 3
2-post lift - POWER HF 3S 3500 OTTO MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 4
2-post lift - POWER HF 3S 3500 OTTO MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 5
2-post lift - POWER HF 3S 3500 OTTO MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 6
2-post lift - POWER HF 3S 3500 OTTO MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 7
2-post lift - POWER HF 3S 3500 OTTO MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 8
2-post lift - POWER HF 3S 3500 OTTO MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 9
2-post lift - POWER HF 3S 3500 OTTO MM - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 10
Add to favorites
Compare this product

Characteristics

Type
2 posts
Maximum load
3.5 ton
Operation
hydraulic
Applications
for car
Voltage
400 V
Lifting height

Max.: 2,045 mm
(80.512 in)

Min.: 90 mm
(3.543 in)

Minimum height

Max.: 185 mm
(7.28 in)

Min.: 90 mm
(3.54 in)

Lifting time

26 s

Motor power

3 kW
(4.08 hp)

Width between colums

Max.: 2,766 mm
(108.9 in)

Min.: 2,470 mm
(97.24 in)

Description

The hydraulic 2 post lifts POWER LIFT HF 3S 3500 OTTO MM with a load capacity of 3500 kg and OTTO MM arms, the world's only lift with a triple safety system. The POWER LIFT HF 3S 3500 OTTO MM is the ideal lift for daily continuous use in a consistently busy garage where only the best is good enough. With their fast lifting and lowering times, with its two redundant hydraulic systems and the automatic safety latch, it is the perfect blend of maximum safety and performance. With the OTTO MM arms consisting of a long 1-time telescopic double jointed arm and a short 2-time telescopic arm you can lift a wide range of vehicle sizes and weight classes. In addition, the POWER LIFT HF 3S 3500 OTTO MM is equipped with Mini-Max pick up pads and therefore allows easy access to the pick-up points of lowered vehicles, vehicles with deep-drawn side skirts or off-road vehicles. After swiveling in, the pads can be conveniently lifted up to the underbody by foot. The HF 3S series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifting platforms Made in Germany. With specially developed, in-house technologies, we are the only lift manufacturer in the world that can provide you with a precise, variable lowering speed and an always perfect synchronisation without manual maintenance effort anbieten. The ergonomic, stepless operating lever Nussbaum-Commander enables sensitive lowering and allows the user to change and correct positions in the twinkling of an eye, all with maximum safety.

VIDEO
