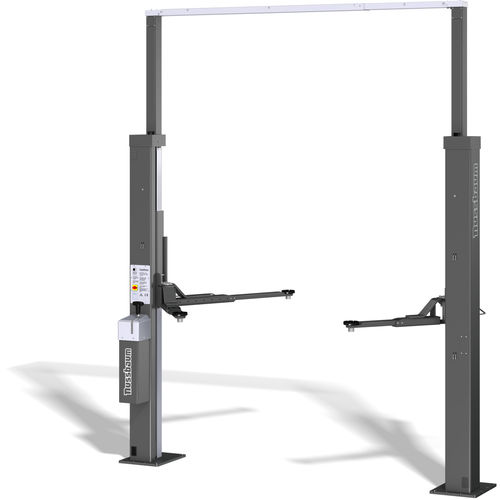

2-post lift POWER HF 3S 3500 SC
3.5 tonhydraulicfor car

2-post lift - POWER HF 3S 3500 SC - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car
2-post lift - POWER HF 3S 3500 SC - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car
2-post lift - POWER HF 3S 3500 SC - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 2
2-post lift - POWER HF 3S 3500 SC - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 3
Add to favorites
Compare this product

Characteristics

Type
2 posts
Maximum load
3.5 ton
Operation
hydraulic
Applications
for car
Voltage
400 V, 220 V
Other characteristics
platform
Lifting height

Min.: 81 mm
(3.189 in)

Max.: 2,005 mm
(78.937 in)

Minimum height

Min.: 81 mm
(3.19 in)

Max.: 144 mm
(5.67 in)

Lifting time

23 s, 26 s

Motor power

3 kW
(4.08 hp)

Width between colums

Min.: 2,520 mm
(99.21 in)

Max.: 2,762 mm
(108.74 in)

Description

The hydraulic 2 post lifts POWER LIFT HF 3S 3500 SC with a load capacity of 3500 kg and extraflat asymmetrical Sportscar arms is the ideal lift for the demanding automotive workshop, where even very low vehicles can be lifted? The POWER LIFT HF 3S 3500 SC is The world's only lift with triple safety system. With their fast lifting and lowering times, with its two redundant hydraulic systems and the automatic safety latch, it is the perfect blend of maximum safety and performance. The HF 3S series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifting platforms Made in Germany. With specially developed, in-house technologies, we are the only lift manufacturer in the world that can provide you with a precise, variable lowering speed and an always perfect synchronisation without manual maintenance effor anbieten. The ergonomic, stepless operating lever Nussbaum-Commander enables sensitive lowering and allows the user to change and correct positions in the twinkling of an eye, all with maximum safety. The POWER LIFT HF 3S 3500 SC is not only safe, but also exceptionally flexible and can be adapted to a wide range of workshop sizes and configurations. Their base frame-free design, adjustable in width and height, enables a wide range of installation combinations and variants: Mit a minimum height of 4182 mm and thanks to the optional riser pipe extensions the POWER LIFT HF 3S 3500 SCcan be used both in workshops with low ceiling heights and to lift the underbody of high vehicles such as vans and vans to the ideal working height for you.
