2-post lift POWER HL 2.40 NT W UNI
4 tonhydraulicfor car

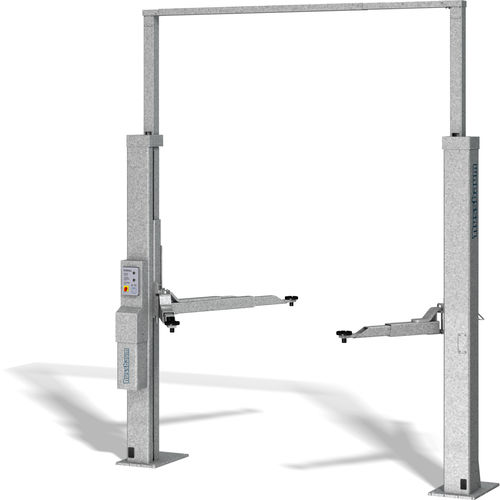

2-post lift - POWER HL 2.40 NT W UNI - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car
2-post lift - POWER HL 2.40 NT W UNI - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car
2-post lift - POWER HL 2.40 NT W UNI - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 2
2-post lift - POWER HL 2.40 NT W UNI - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 3
2-post lift - POWER HL 2.40 NT W UNI - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 4
2-post lift - POWER HL 2.40 NT W UNI - Otto Nussbaum GmbH & Co. KG - 4 ton / hydraulic / for car - image - 5
Add to favorites
Compare this product

Characteristics

Type
2 posts
Maximum load
4 ton
Operation
hydraulic
Applications
for car
Voltage
400 V
Lifting height

Min.: 115 mm
(4.528 in)

Max.: 2,050 mm
(80.709 in)

Minimum height

Min.: 115 mm
(4.53 in)

Max.: 190 mm
(7.48 in)

Lifting time

26 s

Motor power

3 kW
(4.08 hp)

Width between colums

Min.: 2,522 mm
(99.29 in)

Max.: 2,766 mm
(108.9 in)

Description

The hot-dip galvanized hydraulic 2 post lifts POWER LIFT HL 2.40 NT W UNI with a load capacity of 4000 kg and asymmetrical telescopic arms is a version of our HL series specially developed for washing bays. With the fast lifting and lowering times as well as a minimum maintenance effort (no synchronization ropes, no pulleys, no ratchet) it is the ideal lift for daily continuous use in the wet area of every car workshop. The POWER LIFT HL 2.40 NT W UNI is equipped as standard with the patented Nussbaum NT and HyperFlow® Technologies and has been developed and manufactured by Nussbaum since its ; market launch in 2014 in Germany. The HL NT series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifts Made in Germany. With specially developed, in-house technologies, we can provide you with an always perfect synchronisation without manual maintenance effort anbieten. The hydraulic unit protected against dust and water jets (protection class IP 65) and the control element are mounted on the column under a metal cover and are easily accessible for maintenance. The columns and arms are perfectly protected against corrosion in the long term by hot-dip galvanizing. The POWER LIFT HL 2.40 NT W UNI is not only safe, but also exceptionally flexible and can be adapted to a wide range of workshop sizes and configurations. The pulling hydraulic cylinders protect the hydraulic circuit even during intensive use and require very little energy.
