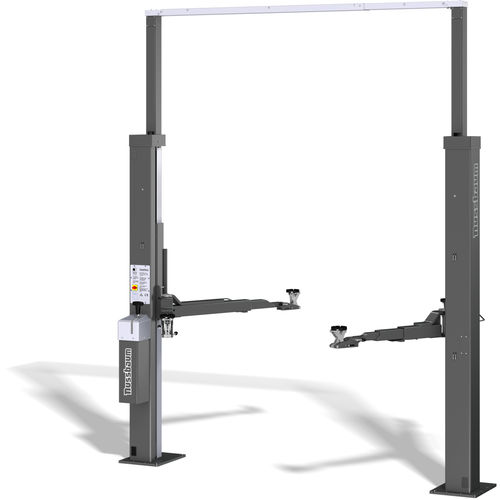

2-post lift POWER HF 3S 3500 MM
3.5 tonhydraulic400 V

2-post lift
2-post lift
2-post lift
2-post lift
Add to favorites
Compare this product


Characteristics

Type
2 posts
Maximum load
3.5 ton
Operation
hydraulic
Voltage
400 V
Applications
for car
Other characteristics
platform
Lifting height

Max.: 2,045 mm
(80.512 in)

Min.: 75 mm
(2.953 in)

Minimum height

Max.: 185 mm
(7.28 in)

Min.: 75 mm
(2.95 in)

Lifting time

23 s

Motor power

3 kW
(4.08 hp)

Column height

4,040 mm
(159.06 in)

Description

The hydraulic 2-post lift Power Lift HF 3S 3500 MM with a load capacity of 3500 kg and asymmetrical Mini Max arms, the world's only lift with a triple safety system. The Power Lift HF 3S 3500 MM is the ideal lift for daily continuous use in a consistently busy garage where only the best is good enough. With their fast lifting and lowering times, with its two redundant hydraulic systems and the automatic safety latch, it is the perfect blend of maximum safety and performance. The Mini Max support plates allow easy access to the pick-up points of lowered vehicles, vehicles with deep-drawn side skirts or off-road vehicles.. The support plates can be conveniently raised to the subfloor by foot after swivelling in. The Power Lift HF 3S 3500 MM is equipped as standard with the patented Nussbaum NT and HyperFlow® technologies ausgestattet and is developed and produced by Nussbaum in Kehl-Bodersweier in Baden-Württemberg . Triple safety: Two redundant hydraulic circuits plus Automatic safety latch (no clacking during lifting and lowering) Height-adjustable Mini Max arms with simple foot control Adjustable in width and height (with optional column extension) Compressed air connection and 220 V socket integrated in column High quality: Every power unit and every hydraulic cylinder is tested before shipment Developed and manufactured in Germany The HF 3S series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifting platforms Made in Germany.
