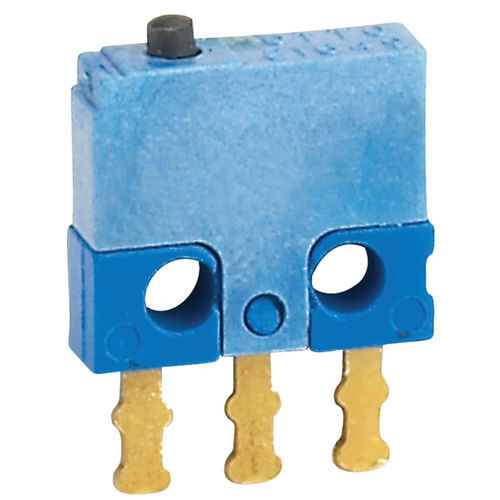

DIP switch B1
single-polemechanicalsubminiature

DIP switch
DIP switch
DIP switch
DIP switch
Add to favorites
Compare this product

Characteristics

Type
DIP
Number of poles
single-pole
Other characteristics
mechanical, subminiature, electromechanical
Protection level
rugged, rugged
Current

10 mA

Voltage

30 mV

Description

The B1 series basic switches are ultra-subminiature in size, designed to reliably switch low level logic signals as well as up to 2 amps switching capacity for a minimum of 25,000 cycles. Mechanical life expectancy is in excess of one million cycles. The molded housing is rugged and structurally stable. The terminals are molded-in and sealed against solder flux entering the switch. The terminals are available in a choice of double turret solder style and 0.020” x 0.025” PC pins. The B1 series is also available with integral lever actuators as B1-5 series.
