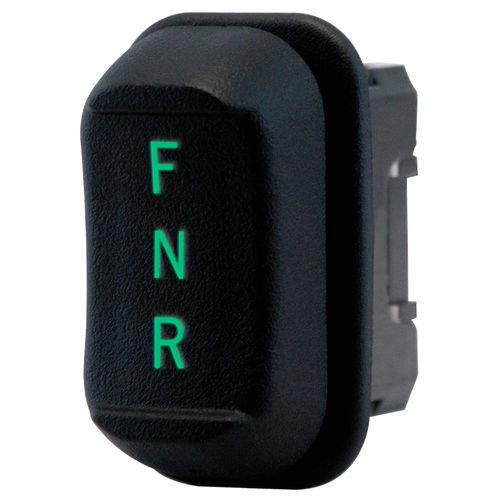

Hall effect switch HFNR
rockersingle-polerobust

Hall effect switch
Hall effect switch
Hall effect switch
Hall effect switch
Hall effect switch
Add to favorites
Compare this product


Characteristics

Type
rocker
Number of poles
single-pole
Protection level
robust, IP68
Mounting
snap-in
Other characteristics
panel-mount, mechanical, sealed, lighting, 3-position, contactless, Hall effect, compact
Primary current

10 mA

Voltage

Min.: 2 V

Max.: 24 V

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

The HFNR is compact, robust and reliable, ideal for grip or panel mount applications. This 3-position switch provides operator comfort by reducing the movement required to change direction or switch gears. Backlighting provides enhanced visibility; making them easy to see in poor lighting or nighttime operation. Electronics are sealed to IP68S. The switch has excellent EMI/RFI immunity and a mechanical life of three million cycles. • 3 million cycle life, full forward to full backward • Hall effect contactless sensing technology • Choice of bezel and button colors • 2V to 24V LED backlighting options • Electronics sealed to IP68S • Outstanding EMI/RFI immunity • Snap-in panel mounting—accepts multiple panel thicknesses • RoHS compliant
