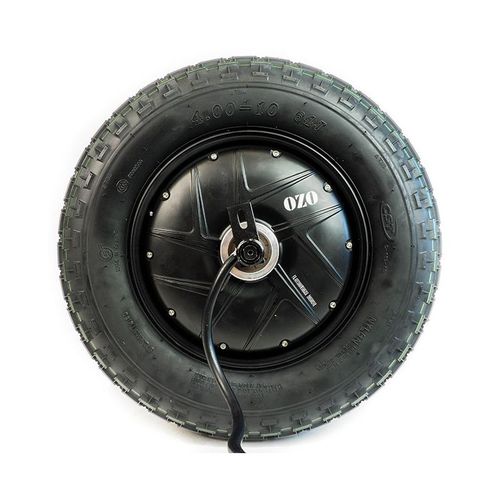

DC wheel motor 006756
brushless48 Vrobust

DC wheel motor
DC wheel motor
DC wheel motor
DC wheel motor
DC wheel motor
DC wheel motor
DC wheel motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
brushless
Voltage
48 V
Protection class
robust
Configuration
aluminum
Number of poles
multipole
Applications
agricultural
Power

1,500 W
(2.039 hp)

Torque

100 Nm
(73.7562 ft.lb)

Rotational speed

170 rpm
(1,068.14 rad.min-1)

Diameter

273 mm
(10.75 in)

Description

1500W electric wheel motor for wheelbarrow and agriculture machine, ideal for providing assistance for difficult and arduous work. Allows to move up to 200kg under 48V DC, max torque 100Nm Standard size of a wheelbarrow tire 4.00 - 10 Disc or drum braking. Turn your wheelbarrow into an electric wheelbarrow with this wheel motor which has the same dimensions as a traditional wheelbarrow wheel. You can install a tire there in 4.00 - 10 This new technology makes it possible to tow a load up to 150kg at 5 km / h (pedestrian speed) in a plowed field and 200 kg on flat and stable ground. This brushless electric motor with direct drive technology is one of the most robust motors on the market, no maintenance required, high endurance and maximum efficiency. Ideal for weeding beds, special machines, animal breeding, use in vineyards, fields with elevation. Organic farming without the use of fossil fuel, transport of bag of fertilizer, case of champagne, case of wine, fodder, This assistance will help preserve your health and that of your employees by considerably reducing work effort. This will increase your work pace without forcing and allow you to carry out work previously impossible. This Brushless motor for agricultural wheelbarrow must be powered with a Lead or Lithium 36V or 48V DC battery. You will be able to install an agrarian or mixed tire in standard 10 "present on traditional wheelbarrows or tillers. We decline this engine with two braking systems, one with a drum brake system (originally integrated with the wheel) and one with a disc holder (not supplied).
