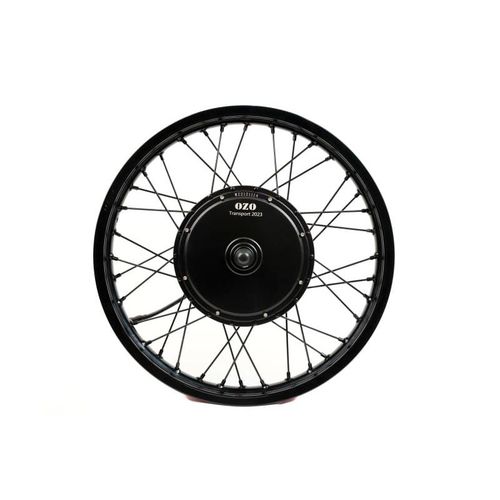

Brushless wheel motor 008776
DCcentralagricultural

Brushless wheel motor - 008776 - OZO - DC / central / agricultural
Brushless wheel motor - 008776 - OZO - DC / central / agricultural
Brushless wheel motor - 008776 - OZO - DC / central / agricultural - image - 2
Brushless wheel motor - 008776 - OZO - DC / central / agricultural - image - 3
Brushless wheel motor - 008776 - OZO - DC / central / agricultural - image - 4
Brushless wheel motor - 008776 - OZO - DC / central / agricultural - image - 5
Brushless wheel motor - 008776 - OZO - DC / central / agricultural - image - 6
Add to favorites
Compare this product
Go to the OZO website for more information

Characteristics

Type
brushless, DC
Configuration
central
Applications
agricultural, industrial, propulsion, for drive systems
Other characteristics
high-performance
Power

4,000 W, 5,000 W
(5.44 hp, 6.8 hp)

Intensity

40 A, 60 A, 90 A

Torque

170 Nm
(125.385565 ft.lb)

Description

This 5000W motor gets 55mmm magnets and can accepts up to 5000W power. Weight : 9,8 kg | dropout : 150mm Delivered with a 200mm cable length The DD55 engine is the most powerful in the range. It is intended for industrial or agricultural use It is a BLDC Brushless motor that can be powered from 24V to 96V and accepts a max current of 90A and 60A continuously. Its stator has a lamination in 0.35mm which gives it a yield of 91%. Center distance: 150mm Length of axis = 229,5mm
