Automatic packaging machine АF-120
verticalcompactliquid

automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Type
vertical, compact
Applications
liquid, for powders, for hygiene products
Domain
for the food industry, medical, for the cosmetics industry, for the pharmaceutical industry
Other characteristics
paper, pneumatic, with sealing
Throughput

Min.: 1,200 p/h

3,000 p/h

Max.: 12,000 p/h

Description

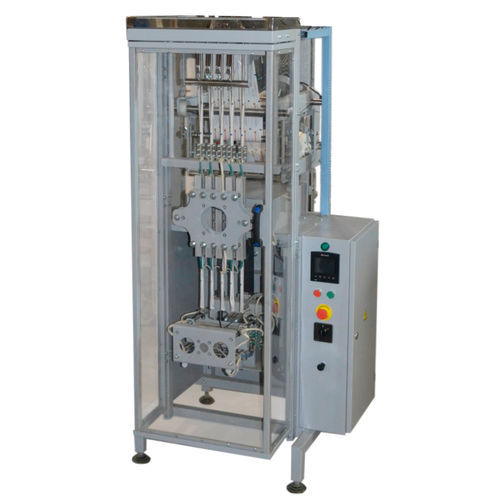

Universal, compact STICK-PACK filling and packaging machine, model АF-120. Designed for automatic process of portioned packaging in a 3-seam package in the form of STICK. It can be used for food or non-food loose products, granular products, liquid and gel. АF-120 can be equipped with different dosing and weighing systems for preliminary dosing of packaged products. All components in contact with the food products are made of stainless steel AISI 304. EXAMPLES OF PRODUCTS FOR PACKAGING sugar, salt, ground pepper, seasonings, spices, instant coffee, 3in1 coffee, cocoa, tea, cinnamon, honey, jam, ketchup, mustard, mayonnaise, shampoo, gel. TECHNICAL PARAMETERS Voltage power supply, V/Hz - 220/50 Power, kW - 1,5 Pneumatic Supply, atm,/l.m. - 6/200 (the compressor is not included!) Dimensions (LxWxH), not more than, mm - 2300/900/1100 Machine weight, not more than, kg - 150 Thickness of packaging material, mkm - Packaging material - polypropylene, multilayer films, laminated paper Dimensions of a package H/W, mm - Height: 30-150, Width: 17-40 Dosing limits, (сm3) - 2-40 (±3%) Output (max), packages per hour - up to 12 000! Type of seams sealing/packaging cutting - Euro-seam Tracking of emergencies - yes Date Setting (ХХ ХХ ХХ) - no

Catalogs

No catalogs are available for this product.

See all of PACKING TECHNOLOGIES LLC‘s catalogs
