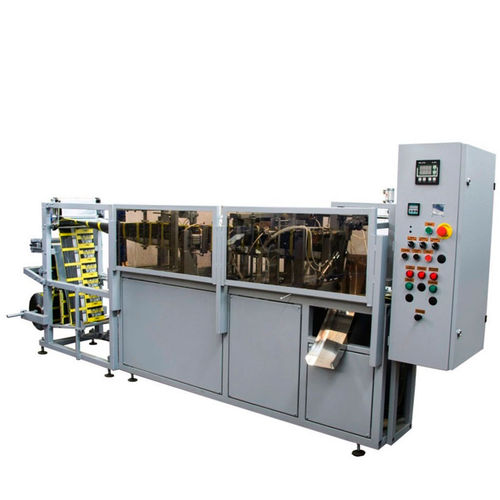

Universal, compact SACHET horizontal filling and packaging machine, model АF-35(SG). Designed for automatic process of portioned packaging in a 3- or 4-seam package in the form of a small pillow (sachet). It can be used for food or non-food loose products, small pieces, granular products, liquid and gel.
Sachet AF-35(SG) can be equipped with different dosing and weighing systems for preliminary dosing of packaged products. All components in contact with the food products are made of stainless steel AISI 304.
EXAMPLES OF PRODUCTS FOR PACKAGING
sugar, salt, ground pepper, seasonings, spices, instant coffee, 3in1 coffee, cocoa, tea, cinnamon, honey, jam, ketchup, mustard, mayonnaise, shampoo, gel.
TECHNICAL PARAMETERS
Voltage power supply, V/Hz - 220/50
Power, kW - 1,5
Pneumatic Supply, atm,/l.m. - 6/350 (the compressor is not included!)
Dimensions (LxWxH), not more than, mm - 1400/900/3500
Machine weight, not more than, kg - 270
Thickness of packaging material, mkm - 30-110
Packaging material - polypropylene, multilayer films, laminated paper
Dimensions of a package H/W, mm - Height: 50-250, Width: 60-200
Output (max), packages per hour - up to 2000
Type of seams sealing/packaging cutting - Euro-seam
Tracking of emergencies - yes
Date Setting (ХХ ХХ ХХ) - yes
