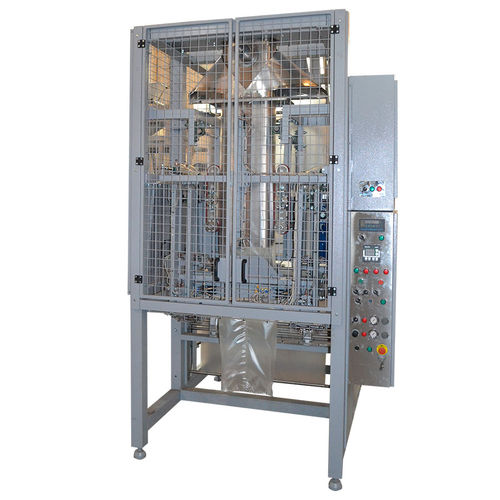

Automatic packaging machine АF-50(8)
verticalcompactfor bulk materials

automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Type
vertical, compact
Applications
for bulk materials, bag, granular, for pillow
Domain
for the food industry
Other characteristics
pneumatic
Throughput

Min.: 300 p/h

Max.: 500 p/h

Description

Universal, compact PILLOW-BAG vertical filling and packaging machine, model АF-50(8). Designed for automatic process of portioned packaging in a 3-seam package in the form of a pillow-bag with the possibility of forming the STABILO bag. It can be used for food or non-food loose products, small pieces, granular products. Pillow-bag AF-50(8) can be equipped with different dosing and weighing systems for preliminary dosing of packaged products. All components in contact with the food products are made of stainless steel AISI 304. EXAMPLES OF PRODUCTS FOR PACKAGING pellets, washing powder, grain, soil, sand, salt, sugar, crushed stone, coal, etc. TECHNICAL PARAMETERS Voltage power supply, V/Hz - 380/50 Power, kW - 3,5 Pneumatic Supply, atm,/l.m. - 6/450 (the compressor is not included!) Dimensions (LxWxH), not more than, mm - 4000/1400/1300 Machine weight, not more than, kg - 480 Thickness of packaging material, mkm - 50-180 Packaging material - polypropylene, multilayer films Dimensions of a package H/W, mm - Height: 200-800, Width: 100-500 Output (max), packages per hour - up to 500 Type of seams sealing/packaging cutting - flat (4 mm) / straight Tracking of emergencies - yes Possibility of forming a package handle - yes Date Setting (ХХ ХХ ХХ) - yes
