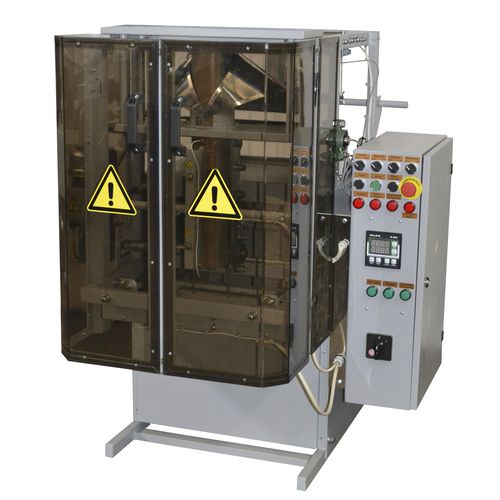

Automatic packaging machine AF-45
verticalcompactfor bulk materials

automatic packaging machine
automatic packaging machine
automatic packaging machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Type
vertical, compact
Applications
for bulk materials, granular, for pillow
Domain
for the food industry
Throughput

Max.: 3,500 p/h

Min.: 2,000 p/h

Description

Universal, compact and PILLOW-BAG vertical filling and packaging machine, model АF-45. Designed for automatic process of portioned packaging in a 3-seam package in the form of a small pillow-bag with the possibility of forming the STABILO bag. It can be used for food or non-food loose products, small pieces, granular products. Pillow-bag AF-45 can be equipped with different dosing and weighing systems for preliminary dosing of packaged products. All components in contact with the food products are made of stainless steel AISI 304. Pillow-bag AF-45 works without pneumatic compressor. EXAMPLES OF PRODUCTS FOR PACKAGING cereals, salt, sugar, snacks, sweets, gingerbreads, coffee, chips, corn sticks, etc. TECHNICAL PARAMETERS Voltage power supply, V/Hz - 280/50 Power, kW - 2,5 Pneumatic Supply, atm,/l.m. - – Dimensions (LxWxH), not more than, mm - 1500/1100/1200 Machine weight, not more than, kg - 220 Thickness of packaging material, mkm - 30-90 Packaging material - polypropylene, multilayer films Dimensions of a package H/W, mm - Height: 100-390, Width: 50-240 Output (max), packages per hour - up to 3500 Type of seams sealing/packaging cutting - Euro-seam Tracking of emergencies - yes Date Setting (ХХ ХХ ХХ) - yes
