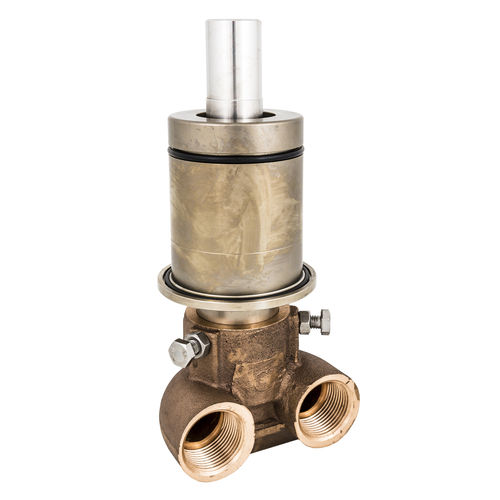

Water rotary union TP 4000 seriesfor the steel industryfor continuous casting applicationswith seal
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Applications
- for the steel industry, for continuous casting applications
- Other characteristics
- with seal, ball bearing, dual-flow, custom, single flow
- Rotational speed
20 rpm
(125.66 rad.min-1)- Pressure
Max.: 20 bar
(290 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 4 in
Min.: 0.5 in
Description
20 RPM+ as per design
Coolant
DN on request
Up to 20 bar (290 Psi)
Up to 120°C (248°F)
Sealing system :Mechanical seal
Steel indsutry - Roll mill - Cooling water
Other configurations on request
Technical data
Ready to be built-in or thread connection
Design on request
For cooling processes on continuous casting rollers
Hardened stainless steel
High resistance to external tension loads and corrosion
