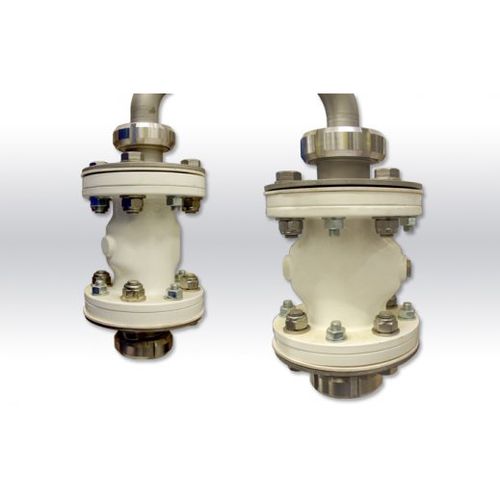

Pinch valve VM series

flow controlfor gascompact

For complete closure or flow regulation of materials in pneumatic conveying lines Pinch valves permit the interception of the flow of materials in pneumatic conveying systems. Cheap solution, easy to install and with low maintenance, pinch valves are ideal for the passage of fluids such as liquid, gas or powder and to ensure complete sealing when closing. 12 models : from Ø 13 (VM013) to Ø 200 (VM0200) The pinch valves are designed to be used to intercept the material flow in pneumatic conveying systems, or other pipelines (dense, corrosive or pasty mixture). The internal flexible sleeve is reshaped in such a way that the passage is hermetically sealed. normes atex certified palamatic process Main advantages Full bore-through passage : no load loss Compact overall dimensions Easy and quick sleeve and bush replacement Full bore-through passage without any pressure loss No product contact with the body Valve body in aluminium alloy Sleeves in fabric-reinforced material Sleeve support bushes either in aluminium alloy, hardened carbon steel, or 304L/316L stainless steel Very low air consumption
