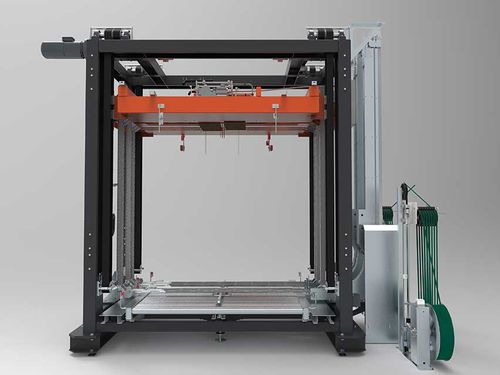

Strapping machine with press UP5-Aggregat

fully-automaticpalletfor PP-PET straps

The Pamminger UP5-Aggregate is a high-performance strapping machine which gets used by strapping pallets with a variable adjustable press power up to 50000 N and a peak power output of 170 – 190 pallets per hour. - stable 4 column design - controlled lifting via toothed belt mittels Zahnriemen - Top-pressure is precisely adjustable by servo drives - strap closure via vibration welding Design - Machine with a maximum passage with up to 3200 mm and a maximum clearance of 3400 mm - stable 4 column design made of bended and welded sheet metal - controlled lifting via toothed belt, therefore reduced wear parts - Top-pressure up to 50 000 N precisely adjustable via servo drives - HIGH-SPEED-KIT up to four seal aggregates/strap guidance are possible - strap closure via low abrasion vibration welding - standard plant components, such as a lift and turning device & rotary table alternately combinable with modular belt or roller conveyor from our in-house production - minimum conveying height of 300 mm Base frame sturdy and torsion-resistant 4 column design with in each column integrated combi-roller guides for the pressure plate. Stationary servo gear motor drive in combination with four synchronized high-performance toothed belts for highly dynamic traverse speed of the pressure plate approx. 0,640 m/s. Compact design with the smallest installation space (height and width) and the largest possible cargo dimensions of its class. Antifall guard of the pressure plate in the connecting plates of the machine columns by monitored, mechanically moveable bolts in service position.
