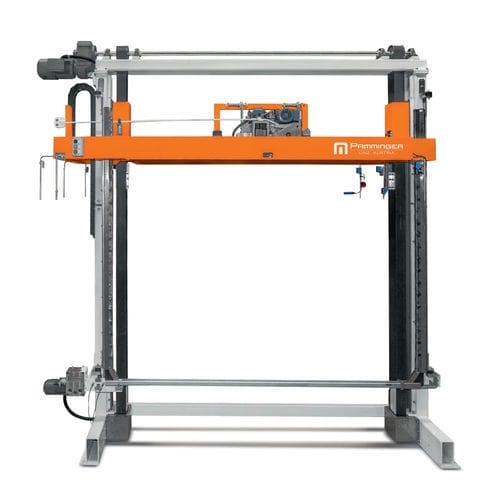

Vertical strapping machine T-Aggregat

fully-automaticpalletfor PP-PET straps

The Pamminger T-Aggregate is a high-performance strapping machine for strapping pallets. There is almost no application, respectively requirement that cannot be solved with the Pamminger T-Aggregate. The upper arrangement of the strapping aggregate and therefore resulting flexibility in width and height of both the machine and the packing piece which has to be processed ensures variable operation of the machine. - Sealing unit positioned at top - Telescope circlet with lance - lowerable Equipment The machine frame in sophisticated 2 column design out of bended and welded sheet metal. Clearance adjustable support rollers ensure a smooth running of the support along the machine columns. The movement of the lifting unit including the sealing unit and the strap guiding frame is utilized with an endless toothed belt and an electric gear motor with brake. Quick and easy installition on bed-plates by using anchors and set screws. Vertical slide and aggregate support for the seal aggregate. The strapping aggregate is self-centering and mounted in the aggregat holder. Eccentrically adjustable roller bearings in the stabilizer box support the lift carriage and center it on the middle of the machine. Belt threading system The beginning of a new roll is automatically fed to the strapping machine via the infeed rail which is positioned outside the strapping machine. Afterwards the belt gets automatically fed in with pressing a button. This enables simple operation and good accessibility for service work. Sealing Unit Prepared for exchange system. Easy handling via quick coupling possible.
