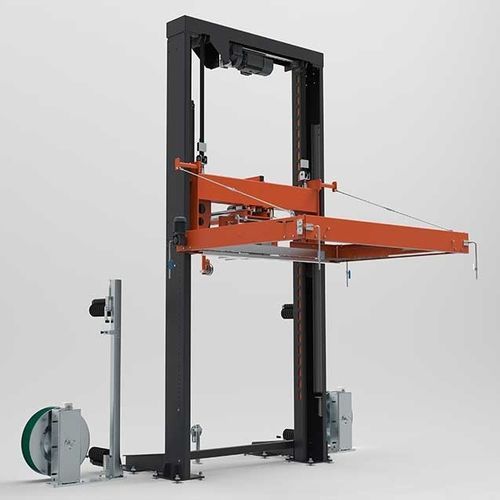

Horizontal strapping machine H-Aggregat

automaticfor building materialsfor PP-PET straps

Horizontal strapping machines are mainly used in the building materials industry. Pamminger has adapted the nessecary requirements to a robust, yet flexible machine design in such a way that applications for barrel strapping or securing front discs in the plastic film industry can be reliably assumed. Design Horizontal strap guidance frame with strap supporting arm lifting carriage, height-adjustable on both columns lift carriage drive with gear brake motor Mounting frame for the strapping aggregate with linear guide Aggregate traversing unit, stroke 500 mm or alternatively 700 mm (optional) Belt tension adjustment Horizontal strap guidance frame with strap supporting arm Operation and control of the entire system via touch panel of the switchboard (colour display) strap holding device A strap holding device opposite the aggregate ensures that the strap is precisely attached to the load even when there is a large distance between the strap guide and the load. Belt tension distribution The strapping aggregate is floatingly mounted (from width 1300mm) for an optimal strapping band tension distribution. In that case this distributes the band tension evenly at the edges of the package. Sealing Unit Prepared for exchange system. Easy handling via quick coupling possible. The T-Aggregate can process strapping bands with a width of 9 to 16 mm and thickness of 0,5 to 1 mm in PET and PP quality. The strip insert and retracting movement happens at a speed of 4,6 m/sec. The clamping speed is 0,12 m/sec. Then the seal is closed by vibration welding with a maximum welding time of 2,5 seconds. Installed power 1 kW at a supply voltage of 400 V, 3 Phasen.
