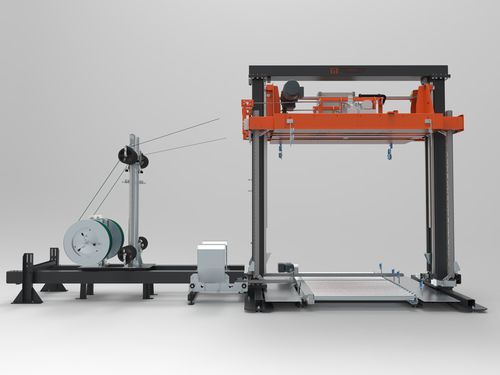

Strapping machine with press UP3-Aggregat

fully-automaticpallet

the strapping press which goes up to 30000 N For applications that don’t require a high-end solution yet, PAMMINGER offers the UP3 Aggregate. With a variably adjustable pressing power of up to 30kN, this system also offers a peak output of 140 pallets per hour. 2 column design with rack drive and a servo motor on board. Press capacity via servo drive adjustable. - stable compact design - strap closure via vibration welding - Press capacity via servo drive adjustable Design - Machine with a maximum possible passage width of 2600 mm - Operation of up to 3 Aggregates - up to 3 strap frames possible - Machine with a maximum clearance of 3000 mm possible, minimal conveying height of 300 mm Base frame sturdy 2 column design with one bolted rack on each side of the 2 columns for the lifting movement. Pressing Plate The weight-optimized Pressing Plate is driven by a servo motor and racks. The machine is designed for a maximum press capacity of 30 kN. Exact and reproducible press capacity, respectively strapping height via Servo power unit. Strapping aggregates with 90° service position. Strapping positions/bounding distance: 440 / 625 mm. A strapping aggregate can be moved via linear motor and additional linear guide. Control electronics The control of the straping machine consists of a S7-1512 SP. The data transmission of the individual sensors takes place via Profinet. Servo converter and frequency converter are used for motor control respectively for press capacity. User guidance is provided on a 7“ Colour-Touchpanel with different user levels for the supervisor, machine operator and service staff. Altogether 250 strapping programms can be saved.
