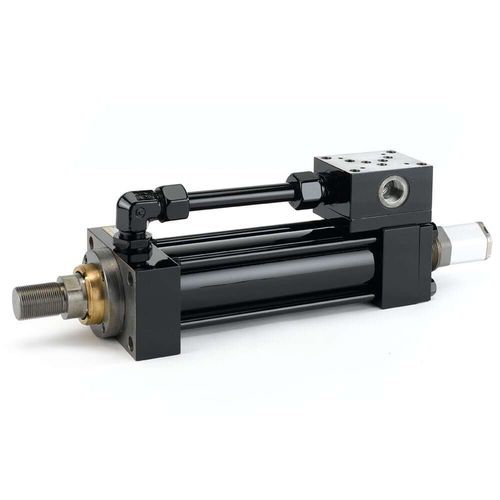

Hydraulic cylinder HMIX series
compactISOlow-friction

hydraulic cylinder
hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product

Characteristics

Type
hydraulic
Other characteristics
compact, ISO, low-friction, industrial, food, chemistry
Stroke

3,000 mm (118.11 in)

Description

210 bar Industrial Hydraulic Integral Feedback Cylinders conforming to ISO6020/2 and DIN24554. The tie rod construction sets the standard for performance, durability & trouble-free operation with superior design and quality for long cylinder service life HMIX Series metric tie rod hydraulic feedback cylinders are Compact Series cylinders rated for use at working pressures up to 210 bar depending on the rod end and type of service. Like all Parker hydraulic cylinders, they are designed to deliver long, efficient service with low maintenance requirements, guaranteeing high productivity year after year. Parker's HMIX series cylinders meet the requirements of ISO 6020/2 (2006), 160 bar Compact Series and the DIN 24 554 standard. HMIX series cylinders are based on the proven HMI Series and are supplied with integrated feedback transducer and manifold. To generate a CAD model of an HMIX Series cylinder, please follow the steps for the equivalent HMIX Series cylinder by using the CUSTOM CONFIGURATOR button. A wide range of optional features is available, permitting HMIX cylinders to be customised to suit even the most challenging industrial application. Options include oversize ports, stop tubes, stroke limiters, gland drains, rod end protection and more. Where only a totally bespoke cylinder will do, our experienced design engineers will work with you to create a unique customised solution. Markets: Energy • Energy Production, Development & Service • Power Generation Government (Non-Aerospace) • Defense • Government (Non-Defense) Industrial • Factory Automation • Entertainment Automation • Machine Tools • Molding • Packaging Machinery • Vehicle Assembly Facilities

Catalogs
