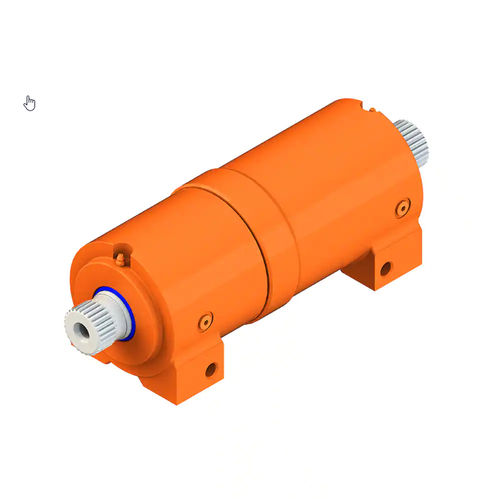

Helical actuator T-Series

rotaryhydraulichandling

The Helac T Series Helical Hydraulic Rotary Actuator is ideal for applications where torque generation and higher cycle rates are the primary requirements, featuring splined output shafts with 200-220 degrees of rotation. Ideal for applications where high torque generation and higher cycle rates are the primary requirements, the Parker Helac T Series Hydraulic Rotary Actuator features splined output shafts and 200-220 degrees of rotation. Helac's helical, hydraulic sliding spline technology is non self-locking while providing high shock resistance and high-holding torque for demanding applications. Functioning as a rotating device, mounting bracket and load bearing structure the T Series eliminates the need for external bearing systems, brakes or locking devices. 4 standard sizes with torque output up to 60,000 in-lbs at 3,000 psi. Click on Where to Buy to view a list of Helac hydraulic rotary actuator distributors and prices. Markets: Agriculture Construction Energy Marine Material Handling Military Mining Truck/Trailer Feature and Benefits: Powerful - High torque, high bearing capacity Durable - Moving parts enclosed, suitable for harsh environments Compact - High power density, fits in tight spaces Holds Position - Zero internal leakage, smooth operation, no external brake required Simplifies - Eliminates bearings, linkages & brackets, reduces bill of materials Backdrives in Overload Conditions - Hydraulic fuse, prevents mechanical damage Applications: Steering Boom positioning Drill positioning Conveyor positioning Blowout preventer Davit rotation Mast / hatch positioning Access ramp deploy Attachment rotation Shotcrete nozzle rotation Pipe handling
