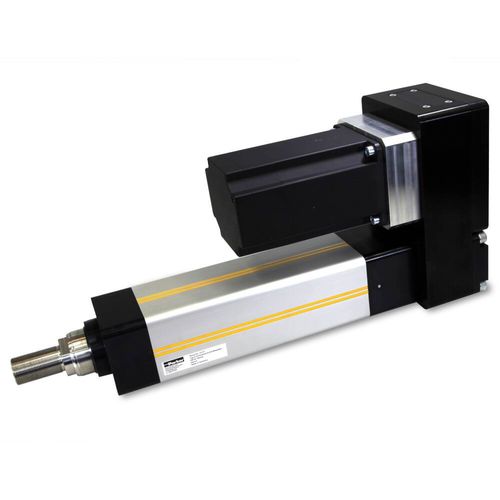

High-force cylinder ETH125

electricwith piston rodscrew

The ETH125 series 'High Force' electric cylinders are ballscrew-driven rod-style linear actuators that offer minimal Total Cost of Ownership (TCO) for reliable positioning in all industrial applications. Compared to other fluidpower-based cylinders these electric cylinders add programmability, the option of closed loop control, plus high thrust force, high durability and a long service life to your application. An electromechanical system such as the ETH electric cylinder offers an economical solution thanks to its high power density and long service life, minimizing the initial and maintenance costs. The ETH125 electric cylinders have dimensions and fixings according to ISO 15552-12, offer thrust forces up to 114000 N and travel lengths up to 2000 mm. The standard central lubrication port helps minimise both maintenance costs and machine downtime. A range of rod end configurations and mounting options provide the flexibility to integrate these electric cylinders into most customer applications. Sensors and cables are directly immersed into a groove in the ETH profile, ensuring a smooth surface for easy cleaning and safe handling. Parker offers complete drive systems including motor and drive for industrial applications. Markets: • Factory Automation • Machine Tools • Packaging Machinery • Food & Beverage • Medical • Pharma • Other Life Sciences • Entertainment Automation • Miscellaneous Industrial • Miscellaneous Manufacturing • Miscellaneous Processing • Chemical Industry • Energy
