Hydraulic fitting 48 series

pneumaticthreadedquick

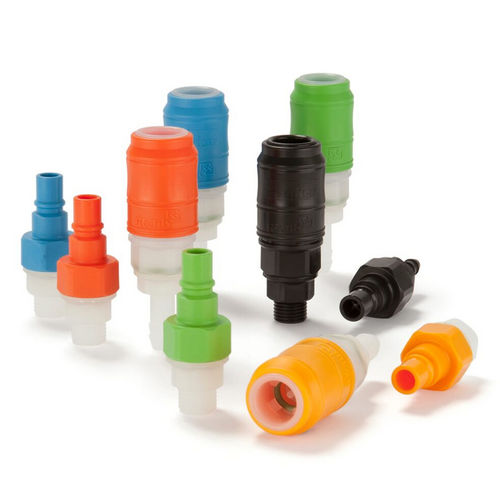

Quick coupling system with nominal diameter 7 for pneumatic and fluid handling applications up to 10 bar. Coupling system with Parker profile. Available made of thermoplastic - POM, PVDF or PVDF with peek spring. Parker's Quick Coupling Sériés 48 made of POM and PVDF has been developed for use in the médical, chemical, food handling, pharmaceutical and laboratory technology industries. The system is also available in a solid plastic design (RectuChem+). Here the métal springs are replaced by springs made of PEEK, an extremely résistant synthetic material. The coupling system is developed for single-hand opération. The color coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available with no valve for a straight-through system. Markets: -Machinery Construction -Automotive -Process -Life Science -Industrial Features/Benefits: -Splash proof design - Plug is sealing priorto opening the valve. -Only provider of a complété thermoplastic coupling (with PEEK spring) -No mix-ups between media due to the color coding of coupling and plug -Single-hand opération for easy and fast connection Applications: -Food and chemical processing -Bio fluid transfer
