Hydraulic fitting 1625 series
pneumaticthreadedquick

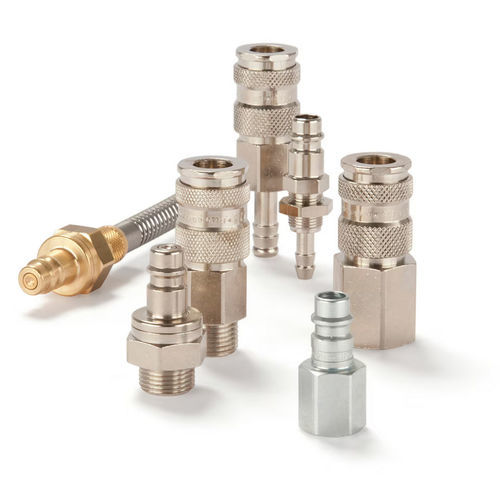

Hydraulic fitting - 1625 series - Parker Fluid System Connectors Division Europe - pneumatic / threaded / quick
Hydraulic fitting - 1625 series - Parker Fluid System Connectors Division Europe - pneumatic / threaded / quick
Hydraulic fitting - 1625 series - Parker Fluid System Connectors Division Europe - pneumatic / threaded / quick - image - 2
Add to favorites
Compare this product

Characteristics

Applications
hydraulic, pneumatic
Attachment
threaded, quick, barbed
Material
plastic, brass, steel
Gender
male, female
Other characteristics
standard, poppet, for the food industry, high-flow, robust, for the aerospace industry
Diameter

7.8 mm
(0.307 in)

Operating pressure

Min.: 0 bar
(0 psi)

Max.: 35 bar
(507.63 psi)

Description

Premium plus quick coupling system with nominal diameter 7.8 for pneumatic and fluid handling applications up to 35 bar. Coupling system with European standard profile. Available made of brass/steel with 2-component plastic sleeve. Parker's premium industrial coupling 3/8" with European standard profile. Suitable for compressed air applications with greater han average air consumption. Coupling system with single-hand opération. Ultra HighFlow valve for optimum flow and low pressure drop. Extremely robust and ergonomically shaped, 2-component plastic sleeve. The right plug for sériés 1625 can be found under sériés 25. Markets: -Machinery Construction -Automotive -Life Science -Process -Rescue Equipment -Mobile Hydraulics -Industrial -Machine Tooling -Material Handling Features/Benefits: -Premium Industrial Coupling with European Standard Profile -Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver -Robust valve body made of steel for heavy duty applications -Available with ergonomie 2 component plastic sleeve -Low connecting forces (bail locking)
