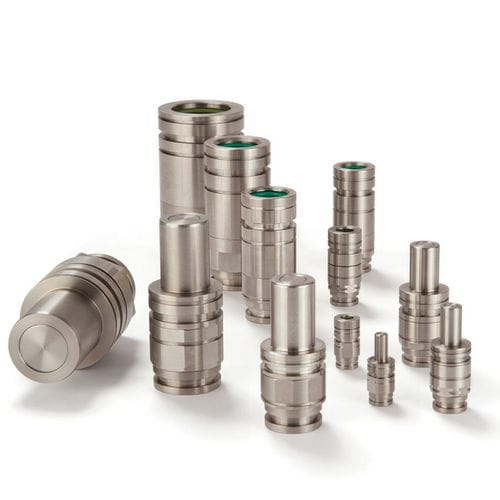

Hydraulic fitting 200KLEK series
pneumaticthreadedquick

hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic, pneumatic
Attachment
threaded, quick
Material
stainless steel
Gender
female
Other characteristics
cooling, dry break, non-spill, dry
Diameter

Max.: 19 mm (0.748 in)

Min.: 3 mm (0.118 in)

Operating pressure

Max.: 15 bar (217.56 psi)

Min.: 0 bar (0 psi)

Description

Dry break quick coupling system with nominal diameter 3/4/6/9/12/19 for pneumatic and fluid handling applications in sensitive environments up to 15 bar. Available made of stainless steel. Parker's Coupling Series 200KLEK is a dry break coupling systems for block/plate assembly in sensitive environments, for example in analysis technology, in cooling systems, in transport systems and many applications with aggressive media. In the case of block assembly, a special sealing system ensures an optimum seal. Extremely low leakage rate and minimum dead space volume. There are absolutely no air pockets when coupling and a barely noticeable film of the medium being channelled on the valve bodies when uncoupling. Series 200KLEK stands out for its low coupling forces. The valve body is protected with collar design. Markets: -Machine tooling Electronic cooling Features/Benefits: -Dry break - no spillage and minimum dead space volume -No air inclusion when connecting -Tolerates deviations in axial alignment when installing Applications: -Electronic cabinets -Laser cooling -Computer cooling -Lithography machines
